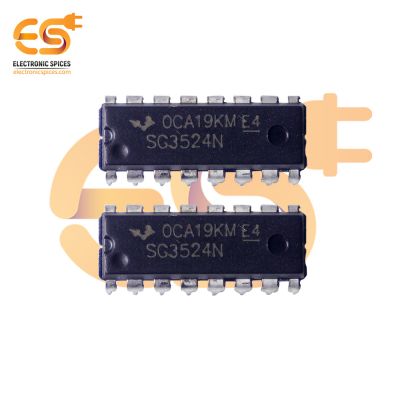

SG3524N Regulating pulse width modulator DIP 16 pin IC pack of 2pcs


Specification
  1. Supply voltage range :  8V to 40V
  2. Output voltage  :  5V
  3. Output current  : 50 mA
  4. Dual output
  5. Topology  :  Boost, Buck, Fly-back, Forward, Push-Pull
  6. Switching frequency :  722 kHz
  7. Fall Time :  100 ns

M.R.P. ₹ 12941.53 (Incl. Tax)

41.53 +(18% GST)

  • Dispatched within 12 hours
  • Free shipping on 2000/-
  • Dedicated technical support team

SG3524N Regulating pulse width modulator DIP 16 pin IC pack of 2pcs

This is a single monolithic chip. It consists of regulating pulse width modulator. This IC incorporates all the functions that are required in making a regulating power supply, inverter, or switching regulator. It can also be used as a control element for high power output applications. It is designed to switch the polarity of regulators. The dual alternating outputs allow either single-ended or push-pull applications.

Package includes

This is the pack of 2 pieces of SG3524N Regulating pulse width modulator DIP 16 pin IC

Features
  1. It is capable of controlling complete PWM power circuitry
  2. 8mA Typical low standby current
  3. Also, dual alternating outputs allow either single-ended or push-pull applications.
