BRIDGE RECTIFIER

KBPC3510 - 35A 1000V Bridge diode rectifier pack of 2pcs

Specifications:

• Maximum recurrent peak reverse voltage : 1000V
• Maximum RMS voltage : 700V
• Maximum DC blocking voltage : 1000V
• Maximum average forward rectified current : 35Amp
• Peak forward surge current : 400Amp
• Surge overload rating : 400A

2W10 - 2A 1000V Bridge Rectifier diode pack of 5pcs

Specifications

• Max Surge Current:2A
• Reverse Voltage:1000V
• Forward Voltage VF Max: 1.1V
• Operating Temperature Max: 125°C
• Operating Temperature Min: -55 °C

KBPC1510 – 15A 1000V Bridge diode rectifier pack of 2pcs

Specifications

1. Maximum recurrent peak reverse voltage : 1000V
2. Maximum RMS voltage : 700V
3. Maximum DC blocking voltage : 1000V
4. Maximum average forward rectified current : 15Amp
5. Peak forward surge current : 300Amp
6. Surge overload rating : 373A

GBU, GBU608 6A 800V Bridge Rectifiers Diode pack of 2pcs

Specification

1. Case : GBU
2. Maximum respective peak reverse voltage : 800v
3. Maximum average rectified current : 6.0A
4. Maxim reverse current : 5.0µA
5. Non-Repetitive Peak Forward Surge Current : 175A
6. Maxim forward voltage : 1.0V

KBPC5010 – 50A 1000V Bridge diode rectifier pack of 2pcs

Specifications

1. Maximum Recurrent Peak Reverse Voltage : 1000V
2. Maximum RMS Voltage : 700V
3. Maximum DC blocking Voltage : 1000V
4. Maximum Average Forward Rectified Current : 50Amp
5. Peak Forward Surge Current : 400Amp
6. Surge Overload Rating : 400A

KBPC5010 – 50A 1000V Bridge diode rectifiers pack of 10pcs

Specifications

1. Maximum Recurrent Peak Reverse Voltage : 1000V
2. Maximum RMS Voltage : 700V
3. Maximum DC blocking Voltage : 1000V
4. Maximum Average Forward Rectified Current : 50Amp
5. Peak Forward Surge Current : 400Amp
6. Surge Overload Rating : 400A

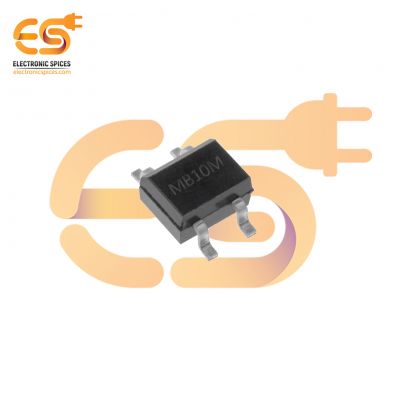

MBM, MB10M 1A 1000V Bridge Rectifiers Diode pack of 5pcs

Specification

1. Case : MBM
2. Maximum respective peak reverse voltage : 1000v
3. Maximum average rectified current : 1A
4. Maxim reverse current : 5.0µA
5. Non-Repetitive Peak Forward Surge Current : 30A
6. Maxim forward voltage : 1.1V

2W10 - 2A 1000V Bridge Rectifier diodes pack of 50pcs

Specifications

• Max Surge Current:2A
• Reverse Voltage:1000V
• Forward Voltage VF Max: 1.1V
• Operating Temperature Max: 125°C
• Operating Temperature Min: -55 °C

KBPC1510 – 15A 1000V Bridge diode rectifiers pack of 10pcs

Specifications

1. Maximum recurrent peak reverse voltage : 1000V
2. Maximum RMS voltage : 700V
3. Maximum DC blocking voltage : 1000V
4. Maximum average forward rectified current : 15Amp
5. Peak forward surge current : 300Amp
6. Surge overload rating : 373A

KBP, KBP310 3A 1000V Bridge Rectifiers Diode pack of 2pcs

Specification

1. Case : KBP
2. Maximum respective peak reverse voltage : 1000v
3. Maximum average rectified current : 3.0A
4. Maxim reverse current : 10.0µA
5. Non-Repetitive Peak Forward Surge Current : 80A
6. Maxim forward voltage : 1.1V

GBU, GBU1510 15A 1000V Bridge Rectifiers Diode pack of 2pcs

Specification

1. Case : GBU
2. Maximum respective peak reverse voltage : 1000v
3. Maximum average rectified current : 15.0A
4. Maxim reverse current : 10.0µA
5. Non-Repetitive Peak Forward Surge Current : 240A
6. Maxim forward voltage : 1.1V

GBU, GBU1508 15A 800V Bridge Rectifiers Diode pack of 2pcs

Specification

1. Case : GBU
2. Maximum respective peak reverse voltage : 800v
3. Maximum average rectified current : 15.0A
4. Maxim reverse current : 10.0µA
5. Non-Repetitive Peak Forward Surge Current : 240A
6. Maxim forward voltage : 1.1V
