HIGH SPEED SWITCHING DIODES
Showing 1–12 of 9 results
-
![1N4148 100V ,DO-34/DO-35 High Speed Switching Diodes Pack of 5pcs]()
1N4148 100V ,DO-34/DO-35 High Speed Switching Diodes Pack of 5pcs
Rs. 29.00Specification:-
- Maximum repetitive peak reverse voltage : 100V
- Maximum average rectified current : 150mA
- Maximum reverse recovery time : 4.0ns
- Power dissipation : 500mW
- Package : DO-34/DO-35
-
![LL914 100V ,MINI MELF High Speed Switching Diodes Pack of 5pcs]()
LL914 100V ,MINI MELF High Speed Switching Diodes Pack of 5pcs
Rs. 29.00Specification:-
- Maximum repetitive peak reverse voltage : 100V
- Maximum average rectified current : 75mA
- Maximum reverse recovery time : 4.0ns
- Power dissipation : 250mW
- Package : MINI MELF
-
![1N914 100V ,DO-34/DO-35 High Speed Switching Diodes Pack of 5pcs]()
1N914 100V ,DO-34/DO-35 High Speed Switching Diodes Pack of 5pcs
Rs. 29.00Specification:-
- Maximum repetitive peak reverse voltage : 100V
- Maximum average rectified current : 75mA
- Maximum reverse recovery time : 4.0ns
- Power dissipation : 250mW
- Package : DO-34/DO-35
-
![1N4448 100V ,DO-34/DO-35 High Speed Switching Diodes Pack of 5pcs]()
1N4448 100V ,DO-34/DO-35 High Speed Switching Diodes Pack of 5pcs
Rs. 29.00Specification:-
- Maximum repetitive peak reverse voltage : 100V
- Maximum average rectified current : 150mA
- Maximum reverse recovery time : 4.0ns
- Power dissipation : 500mW
- Package : DO-34/DO-35
-
![LL4448 100V ,MINI MELF High Speed Switching Diodes Pack of 5pcs]()
LL4448 100V ,MINI MELF High Speed Switching Diodes Pack of 5pcs
Rs. 29.00Specification:-
- Maximum repetitive peak reverse voltage : 100V
- Maximum average rectified current : 150mA
- Maximum reverse recovery time : 4.0ns
- Power dissipation : 500mW
- Package : MINI MELF
-
![LL4148 100V ,MINI MELF High Speed Switching Diodes Pack of 5pcs]()
LL4148 100V ,MINI MELF High Speed Switching Diodes Pack of 5pcs
Rs. 29.00Specification:-
- Maximum repetitive peak reverse voltage : 100V
- Maximum average rectified current : 150mA
- Maximum reverse recovery time : 4.0ns
- Power dissipation : 500mW
- Package : MINI MELF
-
![PMLL4148L 100V MINI MELF High Speed Switching Diodes Pack of 2500]()

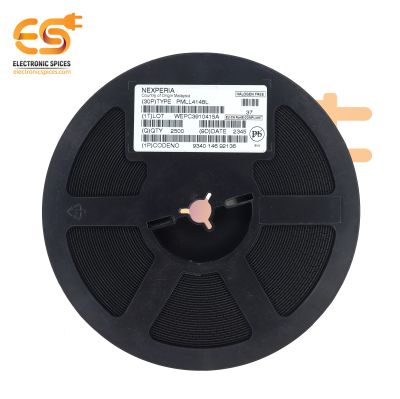

PMLL4148L 100V MINI MELF High Speed Switching Diodes Pack of 2500
Rs. 1999.00Specification:-
- Package: SOD80C
- Mounting Type: SMD
- Part Number: PMLL4148L
- Max. forward voltage: 1V
- Max. forward impulse current: 4A
- Load current: 0.2A
- Max. load current: 0.45A
- Power dissipation: 0.5W
-
![PMLL4148L 100V MINI MELF High Speed Switching Diodes Pack of 50]()
PMLL4148L 100V MINI MELF High Speed Switching Diodes Pack of 50
Rs. 49.00Specification:-
- Package: SOD80C
- Mounting Type: SMD
- Part Number: PMLL4148L
- Max. forward voltage: 1V
- Max. forward impulse current: 4A
- Load current: 0.2A
- Max. load current: 0.45A
- Power dissipation: 0.5W
-
![PMLL4148L 100V MINI MELF High Speed Switching Diodes Pack of 5]()
PMLL4148L 100V MINI MELF High Speed Switching Diodes Pack of 5
Rs. 29.00Specification:-
- Package: SOD80C
- Mounting Type: SMD
- Part Number: PMLL4148L
- Max. forward voltage: 1V
- Max. forward impulse current: 4A
- Load current: 0.2A
- Max. load current: 0.45A
- Power dissipation: 0.5W
