DEVELOPMENTS BOARDS

UNO R3 CH340G development board with ATMEGA328P (SMD) microcontroller chip

Specification:-

1. Model name : UNO R3
2. Chip name : ATMEGA328
3. Operating voltage : 5V
4. Recommended voltage range : 5V to 12V
5. Analog input/output pins : 6
6. Digital input/output pins : 14 (of which 6 provide PWM output)
7. Clock frequency : 16Mhz

UNO R3 AVR USB Development board with ATMEG16U2 microcontroller chip

Specification:-

1. Model name : UNO Rev3
2. Chip name : ATmega16U2
3. Operating voltage : 5V
4. Recommended voltage range : 5V to 12V
5. Digital input/output pins : 14 (of which 6 provide PWM output).
6. Analog input/output pins : 6

NANO R3 CH340 development board with ATmega328 microcontroller chip

Specification:-

1. Model name : NANO R3
2. Chip name : ATmega328
3. Operating voltage : 5V
4. Recommended operating voltage range : 5V to 12V
5. Digital input/output pins :  14 (of which 6 provide PWM output)
6. Analog input/output pins : 8
7. Flash memory : 32KB
8. Clock frequency : 16MHz

Pro mini 5V 16Mhz with ATMEGA328P microcontroller chip board

Specification:-

1. Microcontroller: ATMEGA238P
2. Input voltage : 5V to 12V DC
3. Clock frequency: 16Mhz
4. Supports auto-reset
5. Over-current protected
6. Analog input/output pins: 8
7. Digital input/output pins: 14

LilyPad 328 ATmega328P main board 16M compatible with Arduino

Specifications:-

1. Model type : Lilypad
2. Microcontroller chip : ATmega168 or ATmega328V
3. Operating voltage : 2.7V to 5.5V DC
4. Analog I/O Pins : 6
5. Digital I/O Pins : 14
6. PWM Digital I/O Pins : 6
7. Flash memory : 16KB

MEGA2560 MCU REV3 development board with an onboard ATMEGA2560 microcontroller chip

Specification:-

1. Model name : MEGA2560
2. IC name : ATMEGA2560
3. Operating voltage : 5V
4. Input voltage range : 5V to 12V
5. Memory storage : 256KB flash memory of which 8KB used by the bootloader
6. Digital I/O Pins: 54 (of which 15 provide PWM output)
7. Analog Input Pins: 16

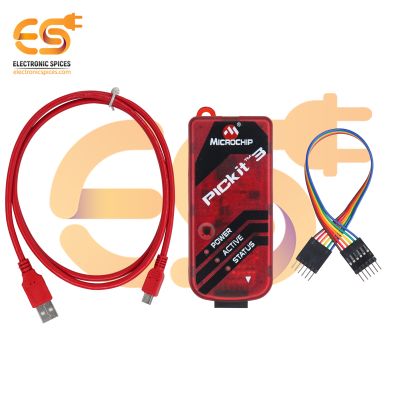

PICKIT-3 Debugger Programmer Simulator Microcontroller Chip

Specification:-

• Input Supply voltage (V): 1.8 ~ 5
• Type: Debugger/Programmer
• Tool/Board Application: Debugging/Programming
• PIC developing data
• Full patch design
• C language development tool manual
• The USB connection is more stable than ICD2
• PIC Kit-3 is compatible with PIC10, PIC12, PIC16, PIC18, dsPIC30, and dsPIC33 microcontroller chips

Package Includes:- 1 x PICKIT3 Programmer, 1 x USB Cable, 1x 6pin Cable

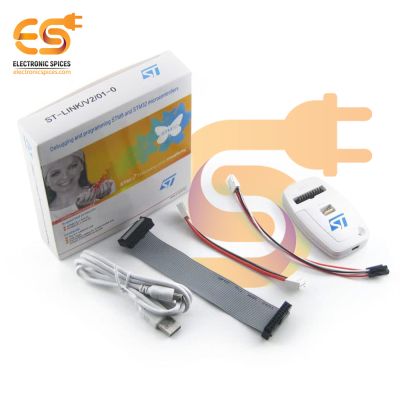

STLINK / V2 Debugger / Programmer for STM8 and STM32

Specification:-

• Connection to PC: USB 2.0
• Target Microcontrollers: STM8 and STM32 families
• Interfaces: JTAG/SWD for STM32, SWIM for STM8
• Operating Voltage: 3.3V to 5V (from target or via USB)
• Supported IDEs: STM32CubeIDE, IAR EWARM, Keil MDK-ARM.

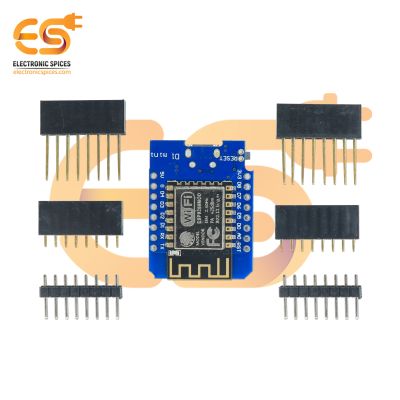

Arduino Wi-Fi D1 Mini ESP8266 Based Development Board

Specification:-

• Microcontroller: ESP8266
• Operating Voltage: 3.3V
• Digital I/O Pins: 11
• Connectivity: 802.11 b/g/n Wi-Fi
• Flash Memory: 4MB (4M Bytes)
• USB Interface: Micro-USB for power and programming

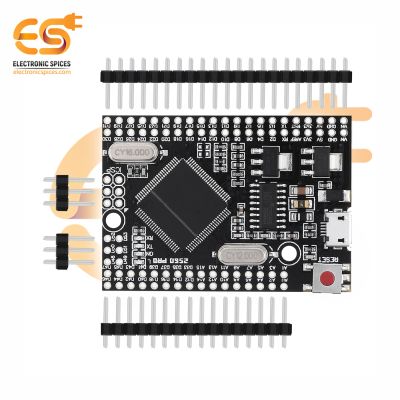

Mega2560 Pro ATMEGA2560-16AU USB CH340G Development Board

Specification:-

• Microcontroller: ATmega2560-16AU
• USB-to-Serial Converter: CH340G
• Operating Voltage: 5V
• Input Voltage (recommended): 6-9V
• Input Voltage (limit): 12V
• DC Current for 5V Pin: 800 mA
• DC Current for 3.3V Pin: 800 mA
• Clock Speed: 16 MHz

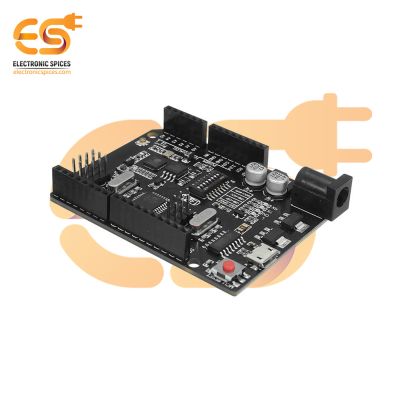

Uno+WiFi R3 AtMega328p+NodeMCU ESP8266 8mb Memory USB-TTL CH340G Compatible for Arduino UNO

Specification:-

• USB-TTL converter
• Logic Level: 5V
• Operating Supply Voltage: 5V
• Digital I/O Pins: 14
• Analog I/O Pins: 6
• Operating temperature: −40С°/+125С°

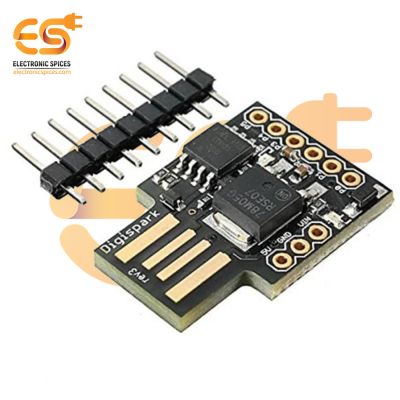

ATTINY85 USB Development Board

Specification:-

• The Onboard, 150 ma 5 v Regulator
• The I2C and SPI (vis USI)
• The Power LED and the Test/Status LEDs
• 4 Single Ended Channels
• Support for the Arduino IDE 1.0 + (OSX/Windows/Linux)
• Power via USB or External Source or 7-16 v to 5 v (automatic selection)
