MOTOR CONTROLLER MODULE

L298N Motor Driver Circuit Board

Specification

1. Driver module : L298N
2. Driver chip : Double H bridge
3. Motor supply voltage (Max.): 46V
4. Motor supply current (Max.): 2A
5. Logic voltage :  5V
6. Driver voltage :  5V to 35V
7. Driver current : 2A
8. Logical current : 0-36mA
9. Maximum power :  25W

4.5V to 35V DC PWM Speed Controller Mini Electrical Motor Control Switch LED Dimmer Module

Specification:-

1. Operating voltage: DC 4.5V to 35V
2. Control power: 90W (maximum)
3. Quiescent current: 0.015A (standby)
4. PWM duty cycle: 1% -100%
5. PWM frequency: 10khz
6. Size: 29mm*23mm
7. Total height: 15mm

PWM DC Motor Speed Controller Speed Switch Module 6V/12V/24V/28V 3A 1203B

Applications:

• For Speed Control Of all Types of DC Brush Motors
• For Controlling Automotive Cooling Fan Speed, Auto Fan Speed, Windshield Wipers, Auto Air Conditioning.
• For Controlling Belt Speed, Pipeline Exhaust Fan Speed, Treadmill Speed, Multi-Speed Parallel Computer Fan, Electronic Fan Speed.

12V Electric adjustment switch regulator PWM motor controller switch

Specifications:-

1. Input supply voltage: DC 12V to 40V
2. The maximum output power: is 400W
3. The maximum continuous output current: 8A
4. Static current: 0.02 A (Standby)
5. PWM frequency: 13kHz
6. Duty cycle adjustable: 10% to 100%

MADE IN INDIA L293D Motor driver module perfect for driving DC Motors and Stepper Motors

Specifications:-

1. MADE IN INDIA
2. Driver model name : L293D
3. Operating voltage : 4V to 12V
4. Peak current : 0.6A
5. Number of channels : 1
6. The driver has two holes of 3 mm dia.
7. High noise immunity inputs.

6V 12V 24V 28V 3A 80W 1203BB DC Motor Speed Controller PWM Reversible Motor Driver Switch

Specification:-

• Voltage: DC 6-28 V.
• Wattage: 80W
• Power and Plug Description: Power Source
• Current: 3A
• Potentiometer with switch function
• DC motor speed controller is connected to DC power supply

12V DC 6 pin 3 Way On/Off/On SPCO Rocker Reverse and Forward motor controller switch

Specification:-

1. 100% Original and best quality product
2. Max. current withstand  :  250V
3. Max. power rating  :  6A
4. High temperature withstand
5. Long life approximately 10,000 clicks
6. High wear and tear properties
7. Durable and excellent design

Digital Multi Servo Tester ESC CCPM Consistency Master Speed Control

Specifications:-

1. Operating Voltage: DC 4.8-6V
2. Offer 3 modes to check servos or ESC
3. Connect to up to 3 servos simultaneously
4. Connect up to 3 ESCs to test and compare their reaction time respectively
5. Built with LED indicators

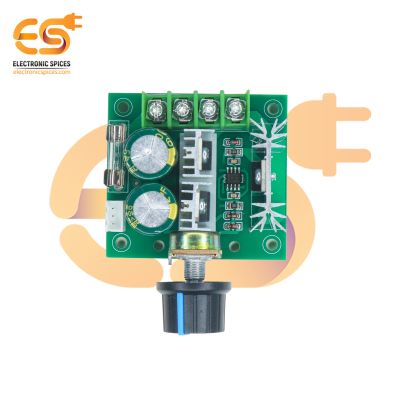

PWM DC Motor Speed Controller 12V-40V 10A Module

Specification:-

• Input supply voltage:- DC 12V-40V
• The maximum continuous output current:- 8A
• The maximum output power:- 400W
• PWM frequency:- 13kHz

• Material:- Plastic, metal

RepRap Stepper Motor Driver Module A4988

Specifications:-

• Minimum operating voltage: 8V
• Maximum operating voltage: 35V
• Continuous current per phase: 1 Amp
• Maximum current per phase: 2 Amp
• Minimum logic voltage: 3V
• Maximum logic voltage: 5.5V
• Microstep resolutions: Full, 1/2, 1/4, 1/8, and 1/16

4000W 220V PWM High-Power Dimming Speed Regulator

Specifications :-

• Input Voltage: 220V AC.
• Maximum Power: 4000W.
• Adjustable Voltage: 0-220V AC.
• AC frequency: 50-60Hz.

Dual Stepper Motor Driver Module

Specifications:-

1. MADE IN INDIA
2. High noise immunity inputs.
3. Operating voltage:  5V to 12V
4. High noise immunity inputs.
5. Thermal Shutdown
