FAST RECOVERY RECTIFIERS

R-6, FR607 1000V Fast Recovery Rectifiers Diode pack of 5pcs

Specification

1. Maximum respective peak reverse voltage : 1000v
2. Maximum average rectified current : 6.0A
3. Maxim reverse current : 10µA
4. Case :  R-6
5. Non-Repetitive Peak Forward Surge Current : 300A
6. Operating Junction Temperature Range : − 65 to +150°C
7. Maxim forward voltage : 1.3V
8. Maximum reverse recovery time  500ns

DO-201AD, FR307 1000V Fast Recovery Rectifiers Diode pack of 5pcs

Specification

1. Maximum respective peak reverse voltage : 1000v
2. Maximum average rectified current : 3.0A
3. Maxim reverse current : 5.0µA
4. Case :  DO-201AD
5. Non-Repetitive Peak Forward Surge Current : 200A
6. Operating Junction Temperature Range : − 65 to +150°C
7. Maxim forward voltage : 1.3V
8. Maximum reverse recovery time  500ns

DO-15, FR154 400V Fast Recovery Rectifiers Diode pack of 5pcs

Specification

1. Maximum respective peak reverse voltage : 400v
2. Maximum average rectified current : 1.5A
3. Maxim reverse current : 5.0µA
4. Case :  DO-15
5. Non-Repetitive Peak Forward Surge Current : 60A
6. Operating Junction Temperature Range : − 65 to +150°C
7. Maxim forward voltage : 1.5V
8. Maximum reverse recovery time  150ns

R-6, FR602 100V Fast Recovery Rectifiers Diode pack of 5pcs

Specification

1. Maximum respective peak reverse voltage : 100v
2. Maximum average rectified current : 6.0A
3. Maxim reverse current : 10µA
4. Case :  R-6
5. Non-Repetitive Peak Forward Surge Current : 300A
6. Operating Junction Temperature Range : − 65 to +150°C
7. Maxim forward voltage : 1.3V
8. Maximum reverse recovery time  150ns

DO-201AD, FR306 800V Fast Recovery Rectifiers Diode pack of 5pcs

Specification

1. Maximum respective peak reverse voltage : 800v
2. Maximum average rectified current : 3.0A
3. Maxim reverse current : 5.0µA
4. Case :  DO-201AD
5. Non-Repetitive Peak Forward Surge Current : 200A
6. Operating Junction Temperature Range : − 65 to +150°C
7. Maxim forward voltage : 1.3V
8. Maximum reverse recovery time  500ns

1F2 100V ,R-1 Fast Recovery Rectifiers Pack of 5pcs

Specification:-

• Maximum repetitive peak reverse voltage : 100V
• Peak forward surge current 8.3ms single half sine- wave : 25A
• Maximum reverse current @ VRRM TA = 25°C : 5.0µA
• Maximum reverse recovery time : 150ns
• Package : R-1

BA159 1000V ,DO-41 Fast Recovery Rectifiers Pack of 5pcs

Specification:-

• Maximum repetitive peak reverse voltage : 1000V
• Peak forward surge current 8.3ms single half sine- wave : 30A
• Maximum reverse current @ VRRM TA = 25°C : 5.0µA
• Maximum reverse recovery time : 500ns
• Package : DO-41

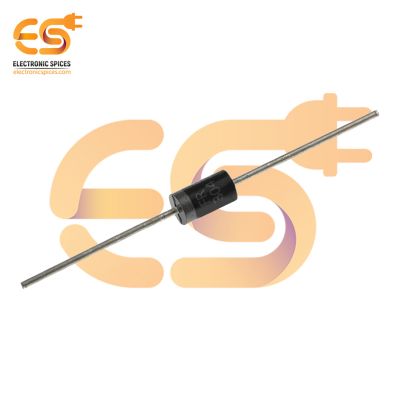

DO-201AD, FR304 400V Fast Recovery Rectifiers Diode pack of 5pcs

Specification

1. Maximum respective peak reverse voltage : 400v
2. Maximum average rectified current : 3.0A
3. Maxim reverse current : 5.0µA
4. Case :  DO-201AD
5. Non-Repetitive Peak Forward Surge Current : 200A
6. Operating Junction Temperature Range : − 65 to +150°C
7. Maxim forward voltage : 1.3V
8. Maximum reverse recovery time  150ns

R-6, FR605 600V Fast Recovery Rectifiers Diode pack of 5pcs

Specification

1. Maximum respective peak reverse voltage : 600v
2. Maximum average rectified current : 6.0A
3. Maxim reverse current : 10µA
4. Case :  R-6
5. Non-Repetitive Peak Forward Surge Current : 300A
6. Operating Junction Temperature Range : − 65 to +150°C
7. Maxim forward voltage : 1.3V
8. Maximum reverse recovery time  250ns

DO-15, FR153 200V Fast Recovery Rectifiers Diode pack of 5pcs

Specification

1. Maximum respective peak reverse voltage : 200v
2. Maximum average rectified current : 1.5A
3. Maxim reverse current : 5.0µA
4. Case :  DO-15
5. Non-Repetitive Peak Forward Surge Current : 60A
6. Operating Junction Temperature Range : − 65 to +150°C
7. Maxim forward voltage : 1.5V
8. Maximum reverse recovery time  150ns

1N4948 1000V ,DO-41 Fast Recovery Rectifiers Pack of 5pcs

Specification:-

• Maximum repetitive peak reverse voltage : 1000V
• Peak forward surge current 8.3ms single half sine- wave : 30A
• Maximum reverse current @ VRRM TA = 25°C : 5.0µA
• Maximum reverse recovery time : 500ns
• Package : DO-41

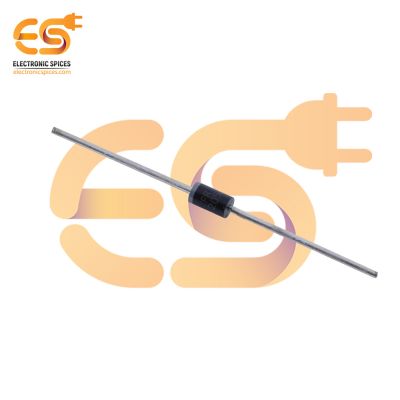

DO-15, FR205 600V Fast Recovery Rectifiers Diode pack of 5pcs

Specification

1. Maximum respective peak reverse voltage : 600v
2. Maximum average rectified current : 2.0A
3. Maxim reverse current : 5.0µA
4. Case :  DO-15
5. Non-Repetitive Peak Forward Surge Current : 70A
6. Operating Junction Temperature Range : − 65 to +150°C
7. Maxim forward voltage : 1.3V
8. Maximum reverse recovery time  250ns
