SENSOR MODULES

PIR Motion Detector Sensor Module

Specifications:-

1. Detection Range: Usually between 16 and 23 feet (5 to 7 meters)
2. The angle of detection: is typically 120 degrees
3. Operating Voltage: Typically between 3.3 and 5 volts DC
4. Sensitivity Adjustment: Frequently features sensitivity settings that can be changed.
5. Output Signal: Digital (High/Low) or Analog (Voltage)

LM393 Photosensitive light dependent resistor LDR sensor module

Specifications:-

1. Operating voltage : 3.3V-5V
2. Power indicator : Red
3. Digital switch output indicator : Green
4. Bolt hole for easy installation

Ultrasonic Module HC-SR04 Distance Measuring Ranging Transducer Sensor DC 5V 2-450cm

Specification:-

1. Operating voltage: 5V DC
2. Operating current: 15mA
3. Measure angle: 15°
4. Ranging distance: 2cm - 400cm
5. Working frequency: 40Hz
6. Trigger input signal: 10uS TTL pulse
7. Echo output signal: Input TTL lever signal and the range in proportion
8. Working voltage : 5V(DC)
9. Static current: Less than 2mA.
10. Output signal: Electric frequency signal, high-level 5V, low-level 0V.

MPU6050 Gyroscope and Accelerometer sensor module

Specifications:-

1. 3-aixs accelerometer and 3-axis gyroscope values combined
2. Power supply : 3V to 5V
3. Communication : I2C protocol
4. Built-in 16-bit ADC provides high accuracy
5. Built-in DMP provides high computational power
6. Can be used to interface with other IIC devices like a magnetometer

DHT11 Temperature and humidity detection sensor module

Specification:-

1. Operating Voltage:  3.5V to 5.5V
2. Operating current:   0.3mA
3. Output:  Serial data
4. Temperature Range  :  0°C to 50°C
5. Humidity Range:  20% to 90%

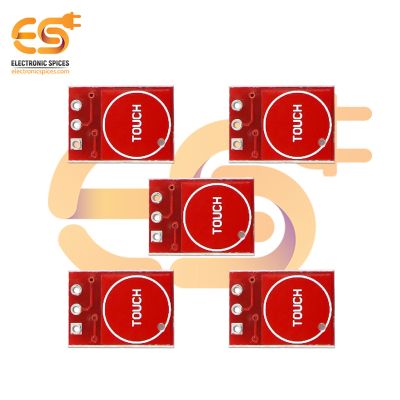

TTP223 Digital Capacitive Touch Switch Module-red

Specifications:-

1. Supports momentary or latching/toggle modes.
2. Supports Active High or Active Low output signal modes.
3. Input voltage : 2V to 5.5V DC
4. The response time max: 60mS in fast mode, ~220mS at low power mode @VDD=3V.
5. Sensitivity can adjust by the capacitance(0~50pF).
6. Have two kinds of sampling length by pad option

Digital Capacitive Touch Switch Module For Arduino - TTP223B

Specifications:-

1. Power supply voltage(VCC): 2.0, 3, 5.5 V.
2. Output high VOH: 0.8VCC V
3. Output low VOL: 0.3VCC V
4. Response time (touch mode): 60 mS
5. Output Pin Sink Current (@ VCC = 3V, VOL = 0.6V) : 8 mA
6. Output pin pull-up current (@ VCC = 3V, VOH = 2.4V) : 4 mA
7. Response time (low power mode): 220 mS
8. Size : 2.4 x 2.4

Water Tank Overflow Alarm with Voice Sound Wired Sensor and Red Indicator

Specification:-

• Early Warning System
• Easy Installation
• Instant Alerts
• Loud human voice Alarm
• Low maintenance
• Alarm in two Languages: English & Hindi

Flame Sensor infrared receiver ignition source detection module

Specifications:-

1. Output channel : 1
2. Power supply : 3.5V to 5V
3. High Photo Sensitivity
4. Fast Response Time
5. Sensitivity adjustable
6. Working voltage : 3.3V to 5V
7. Detect range : 60 degrees
8. Digital/Analog output
9. On-board LM393 chip

ESP8266 5V 1 Channel relay module IOT smart home remote control switch

Specifications:-

1. Transmission Distance (m) : 40m
2. Trigger voltage: 5V DC
3. Switching voltage: 250V @ 10A
4. Switching voltage: 30V @ 10A
5. Relay voltage : 5V (10A/250V AC, 10A/30V DC)
6. Baud rate: 9600

R307 Optical Fingerprint Reader Sensor Module

Specification:-

1. Type: Optical
2. Sensor Life: 100 million times
3. Static indicators: 15KV
4. RS232 communication baud rate: 9600BPS~115200BPS changeable
5. Image Capture Surface 20*15(mm)
6. Verification Speed:  0.2 sec
7. Scanning Speed: 0.3 sec
8. Character file size:  256 bytes

TEC1-12706 12V 6A Thermoelectric Peltier Cooler Module

Specification:-

• Operating Voltage (V): 12V
• Maximum Voltage Umax (V): 15.4V
• Maximum Current Imax (A): 6A
• Maximum Power: 92 W
• Power Consumptions (W): ~60W
• Dimensions : 40mm*40mm*3.9mm (L*W*H)
• Easy transition between the hot side to the cool side
