ADC & DAC DIP IC

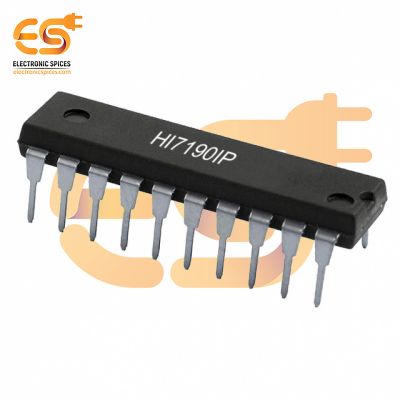

HI7190IP 24-Bit High Precision Sigma-Delta A/D Converter IC (DIP-20 Package)

Specification:-

• 22-Bit Resolution with No Missing Code
• 0.0007% Integral Non-Linearity (Typ)
• 20mV to ±2.5V Full Scale Input Ranges
• Internal PGIA with Gains of 1 to 128
• Temperature Range -40°C to 85°C
• Serial Data I/O Interface, SPI Compatible

CA3161 IC + CA3162 IC Pair A/D Converter for 3 Digit Display DIP-16 Package

Specification:-

CA3161 IC

• DC V SUPPLY: +7.0 V
• Input Voltage: +5.5 V
• Output Voltage: +7 V
• Power Dissipation: 18mW (Typ)

CA3162 IC

• DC V SUPPLY: +7.0 V
• Input Voltage: +15 V
• Temperature Range: 0°C to 75°C
• Low Speed (4Hz) or High Speed (96Hz) Conversion Rate

ADC0808 8-Bit A/D Converter with 8-Channel Multiplexer IC DIP-28 Package

Specification:-

• Input type: Single-Ended
• Interface: Parallel
• Power consumption: 15 mW
• Input range: 0 to 6V
• Multi-channel configuration: Multiplexed
• Temperature Range: -40°C to 85°C

MCP3208 12-Bit 8-Channel A/D Converter (ADC) with SPI Interface IC DIP-16 Package

Specification:-

• Single supply operation: 2.7V – 5.5V
• 100ksps max. sampling rate at VDD = 5V
• 50ksps max. sampling rate at VDD = 2.7V
• Industrial temp range: -40°C to +85°C
• All Inputs and Outputs w.r.t. VSS: -0.6V to VDD +0.6V
• Storage Temperature: -65°C to +150°C
• Ambient temperature with power applied: -65°C to +125°C
• Soldering temperature of leads (10 seconds): +300°C
• ESD Protection On All Pins (HBM): ≥ 4 Kv

HX710B Weighing Scale 24-Bit Analog to Digital Converter (ADC) IC (DIP-8 Package)

Specification:-

• 8 pin SOP-8 or DIP-8 package
• Simultaneous 50 and 60Hz supply rejection
• Current consumption: normal operation < 1.2mA, power down < 1uA
• Operation supply voltage range: 2.6 ~ 5.5V
• Operation temperature range: -40 ~ +85℃

MCP3008 8-Channel 10-Bit A/D Converter with SPI Interface IC (DIP-16 Package)

Specification:-

• Single supply operation: 2.7V – 5.5V
• 200 ksps max. sampling rate at VDD = 5V
• 75 ksps max. sampling rate at VDD = 2.7V
• 500 µA max. active current at 5V
• All Inputs and Outputs w.r.t. VSS: - 0.6V to VDD + 0.6V
• Storage Temperature: -65°C to +150°C
• Ambient temperature with power applied: -65°C to +150°C
• Soldering temperature of leads (10 seconds): +300°C
• ESD Protection On All Pins (HBM): ≥ 4 kV

DAC0800 8-Bit Digital to Analog D/A Converter IC (DIP-16 Package)

Specification:-

• Output type: Unbuffered Current
• DAC channels: 1
• Output range: 0 to 2mA
• Settling time: 0.1µs
• High Output Compliance: −10 V to +18 V
• Wide Power Supply Range: ±4.5 V to ±18 V
• Low Power Consumption: 33 m W at ±5 V
• Operating temperature range: 0°C to 70°C

MCP4821 12 Bit Voltage Output Digital to Analog Converter (DAC) with SPI Interface IC (DIP-8 Package)

Specification:-

• Maximum Junction Temperature: 150°C
• Current at Input Pins: ±2 mA
• Current at Supply Pins: ±50 mA
• Current at Output Pins: ±25 mA
• All Inputs and Outputs: VSS – 0.3V to VDD + 0.3V
• Storage Temperature: -65°C to +150°C
• Ambient temperature with power applied: -55°C to +125°C
• Soldering temperature of leads (10 seconds): +300°C
• ESD Protection On All Pins (HBM): ≥ 4 Kv

DAC0808 8-Bit Digital to Analog D/A Converter IC (DIP-16 Package)

Specification:-

• DAC channels: 1
• Architecture: Multiplying DAC
• Output type: Unbuffered Current
• Output range: 0 to 4.2mA
• Operating Temperature: 0°C to +70°C
• High speed multiplying input slew rate: 8 mA/µs
• Power supply voltage range: ±4.5V to ±18V
• Low power consumption: 33 mW @ ±5V

ADC0804 8-Bit Analog to Digital A/D Converter IC (DIP-20 Package)

Specification:-

• Supply Voltage: 6.5 V
• Conversion Time <100µs
• Voltage at Any Input: -0.3 V to (V+ +0.3 V)
• Temperature Range: 0°C to 70°C
• Analog Voltage Input Range (Single + 5V Supply)  0V to 5V

MCP3201 12-Bit A/D Converter (ADC) with SPI Interface IC (DIP-8 Package)

Specification:-

• Single supply operation: 2.7V – 5.5V
• 100ksps max. sampling rate at VDD = 5V
• 50ksps max. sampling rate at VDD = 2.7V
• All Inputs and Outputs: VSS – 0.6V to VDD + 0.6V
• Storage Temperature: -65°C to +150°C
• Ambient temperature with power applied: -55°C to +125°C
• Soldering temperature of leads (10 seconds): +300°C
• ESD Protection On All Pins (HBM): ≥ 4 Kv

MCP3202 12-Bit Dual Channel A/D Converter (ADC) with SPI Interface IC (DIP-8 Package)

Specification:-

• Single supply operation: 2.7V – 5.5V
• 100ksps max. sampling rate at VDD = 5V
• 50ksps max. sampling rate at VDD = 2.7V
• All Inputs and Outputs w.r.t. VSS: -0.6V to VDD +0.6V
• Storage Temperature: -65°C to +150°C
• Ambient temperature with power applied: -65°C to +125°C
• Soldering temperature of leads (10 seconds): +300°C
• ESD Protection On All Pins (HBM): ≥ 4 Kv
