SENSOR MODULES

Snow Raindrops Humidity Rain Weather Detect Sensor Module For Arduino

Specifications:-

1. Operating voltage : 3.3V to 5V
2. Distribution bit to adjust sensitivity
3. A fixed bolt hole for easy installation
4. Power indicator, the output signal LED indicator
5. A large area of ​​rain board, more appropriate to detect rain
6. Board with positioning holes to facilitate installation

IR Proximity Sensor for Line Follower

Specifications:-

1. Operating voltage : 3.6V to 5V DC
2. Digital output : logic one (+3.5V DC) logic zero (0V DC)
3. Mounting hole size : 3mm
4. IC model name : 393
5. Distance measuring range : 2cm to 30cm
6. Effective distance range : 2cm to 80 cm

DC 12V to 60V 8A Automatic Led Infrared PIR Motion Detector Sensor Switch

Specification:-

• Actuator Type:  Sensor
• Voltage: DC 12V-60V
• Output Current:8V
• Operation Mode: ON-OFF
• Output: 1 Channel

Water Sensor Module for Arduino Moisture / Drop / Depth of Water Test - Red

Features:-

1. Sensor Type: Water sensor module.
2. Purpose: Detects moisture, water depth, or water drops.
3. Compatibility: Designed for Arduino and similar platforms.
4. Color: Red.
5. Versatile for various water-related applications in DIY electronics and projects.

IIC or I2C Serial interface adapter module for 16 x 2 (1602) Character LCD display

Specifications:-

1. IC Name : PCF8574
2. Operating voltage : 5V
3. PCB size : 42mm x 20mm(L x B)
4. Serial I2C control of LCD display using PCF8574.
5. Backlight can be enabled or disabled via a jumper on the board.
6. Contrast control via a potentiometer.

ESP8266 5V 1 Channel relay module IOT smart home remote control switch

Specifications:-

1. Transmission Distance (m) : 40m
2. Trigger voltage: 5V DC
3. Switching voltage: 250V @ 10A
4. Switching voltage: 30V @ 10A
5. Relay voltage : 5V (10A/250V AC, 10A/30V DC)
6. Baud rate: 9600

OV7670 Camera Image sensor module

Specifications:-

1. Photosensitive Array: 640 x 480.
2. IO Voltage: 2.5V to 3.0V.
3. Operating Power: 60mW/15fpsVGAYUV.
4. Sleeping Mode: <20μA
5. Lens Size: 1/6″.
6. Vision Angle: 25 degrees.
7. Max. Frame Rate: 30fps VGA.
8. Electronic Exposure: 1 to 510 row.
9. Pixel Coverage: 3.6μm x 3.6μm.
10. Duck Current: 12 mV/s at 60℃.

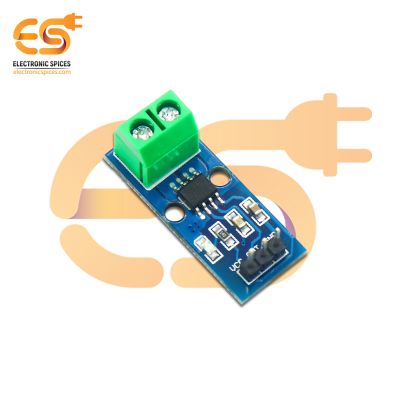

ACS712 - 10A range current detection sensor module

Specifications:-

• Measures both AC and DC current
• Provides isolation from the load
• Easy to integrate with MCU, since it outputs an analog voltage
• Scale factor : 150mV/Amp

MAX485 TTL to RS485 Long range converter module

Specifications:-

1. IC chip : MAX485
2. Operating voltage : 5V DC
3. Slew-rate limited transceiver
4. Low power consumption
5. Convenient RS-485 communication wiring
6. Multiple Units can be connected

Coil spring switch, a multi-functional capacitive touch sensor switch, and an LED dimmer control switch

Specification

•  Input voltage: 3.7V-24v
• Output voltage: 3.7V-24V
• Standby current: 10-15mA
• Standby power consumption: 0.01W
•  Load power: 72W
•  Load current: 3A
• Working temperature: -25℃-85℃

MQ-2 Flammable gas and smoke detection sensor module

Specifications:-

1. Operating voltage:  5V DC
2. Interface type:  Analog and Digital
3. High sensitivity to smoke and combustible gasses like Hydrogen, LPG & Propane.
4. Low Cost
5. Stable & Long Life.
6. Board Power indication

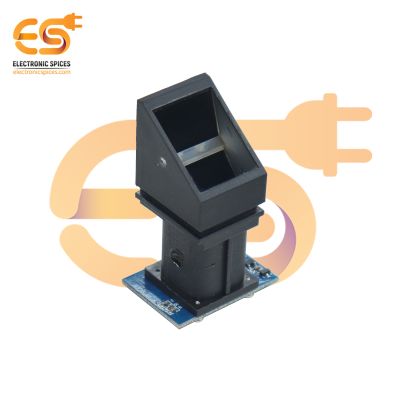

R307 Optical Fingerprint Reader Sensor Module

Specification:-

1. Type: Optical
2. Sensor Life: 100 million times
3. Static indicators: 15KV
4. RS232 communication baud rate: 9600BPS~115200BPS changeable
5. Image Capture Surface 20*15(mm)
6. Verification Speed:  0.2 sec
7. Scanning Speed: 0.3 sec
8. Character file size:  256 bytes
