OPTOISOLATORS TRANSISTOR

EL357N(C)(TA)-G 3750Vrms Channel 4-SMD Gull Wing Opto-isolator Transistor

Specification:-

• Mounting Type: Surface Mount
• Type of optocoupler: optocoupler
• Mounting: SMD
• Number of channels: 1
• Output Type: Transistor
• Insulation voltage: 3.75 kV
• Voltage - Output (Max): 80V
• Current - Output / Channel: 50mA
• Voltage - Forward (Vf) (Typ): 1.2V
• Current - DC Forward (If) (Max): 50 mA
• Vce Saturation (Max): 200mV

EL817S1(C)(TU)-F Output 5000Vrms 1 Channel Opto-isolator SMD Transistor 4-PDIP

Specification:-

• Package/Case: SMD4 Gull Wing
• Isolation Voltage: 5000 Vrms
• Rise / Fall Time (Typ): 4us / 3us
• Voltage: Forward (Vf) (Typ): 1.2V
• Voltage: Output (Max): 35V
• Current: DC Forward (If) (Max): 60mA
• Current: Output / Channel: 50mA
• Output Type: Transistor

EL817C Output 5000Vrms 1 Channel Opto-isolator Transistor 4-PDIP

Specification:-

• Package/Case: PDIP4 (0.300", 7.62mm)
• Mounting Style: Through Hole
• Number of Channels: 1 Channel
• Isolation Voltage: 5000 Vrms
• Output Type: NPN Phototransistor

EL817B Output 5000Vrms 1 Channel Opto-isolator Transistor 4-PDIP

Specification:-

• Package/Case: PDIP4 (0.300", 7.62mm)
• Mounting Style: Through Hole
• Number of Channels: 1 Channel
• Isolation Voltage: 5000 Vrms
• Output Type: NPN Phototransistor

CNY17F-1SD Output 5300Vrms 1 Channel Opto-isolator Transistor

Specification:-

• Package/Case: SMD6 Gull Wing
• Number of Channels: 1 Channel
• Mounting Style: Through Hole
• Isolation Voltage: 5300 Vrms
• Output Type: NPN Phototransistor

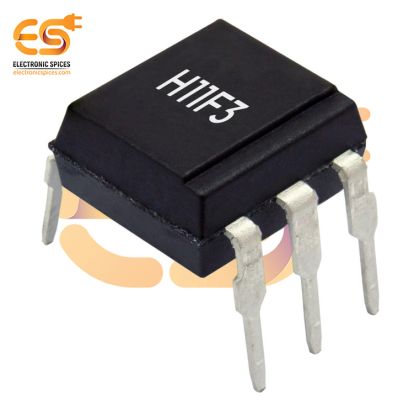

H11F3 Optoisolator MOSFET Output 7500Vpk 1-Channel 6-PDIP

Specification:-

• Package: PDIP6 (0.300", 7.62mm)
• Number of Channels: 1 Channel
• Isolation Voltage: 5300 Vrms
• Forward Current: 16 mA
• Forward Voltage: 1.75V
• Reverse Voltage: 5V
• Power Dissipation: 300 mW

H11D1 Output 5000Vrms 1 Channel Opto-isolator Transistor

Specification:-

• Package/Case: SMD6 Gull Wing
• Package/Case: DIP-6
• Number of Channels: 1 Channel
• Mounting Style: Through Hole
• Isolation Voltage: 5000 Vrms
• Output Type: NPN Phototransistor

TIL117 Optoisolator Transistor with Base Output 5000Vrms 1 Channel 6-PDIP (White Color)

Specification:-

• Package: PDIP6 (0.300", 7.62mm)
• Isolation Voltage: 5000 Vrms
• Forward Voltage: 1.2V (typical) at 20mA
• Reverse Voltage: 6V
• Forward Current: 60mA (maximum)
• Collector-Emitter Voltage: 30V
• Emitter-Collector Voltage: 7V
• Collector Current: 50mA (maximum)

MOC3082M Optoisolator Triac Output 4170Vrms 1 Channel 6-PDIP

Specification:-

• Package: PDIP6 (0.300", 7.62mm)
• Mounting Type: Through Hole
• Output Type: Triac
• Voltage Isolation: 4170Vrms
• Voltage Off State: 800 V
• Static dV/dt (Min): 600V/µs
• Voltage Forward (Typ): 1.3V
• Current DC Forward (Max): 60 mA
• Operating Temperature: -40°C ~ 85°C

4N28 Optoisolator Transistor with Base Output 5000Vrms 1-Channel 6-PDIP

4N27SR2M Optoisolator Transistor with Base Output 4170Vrms 1-Channel 6-SMD Gull Wing (White Color)

Specification:-

• Package: SMD6 Gull Wing
• Voltage Output (Max): 30V
• Voltage Isolation: 4170Vrms
• Voltage Forward: 1.18V
• Current DC Forward (If) (Max): 60 mA
• Saturation (Max): 500mV
• Operating Temperature: -40°C ~ 100°C

MCT62SD Optoisolator Transistor Output 5000Vrms 2-Channel 8-SMD Gull Wing

Specification:-

• Package: SMD8 Gull Wing
• Forward Current: 60 mA
• Forward Voltage: 1.5 V
• Maximum Collector Emitter Voltage: 85 V
• Maximum Collector Current: 30 mA
• Maximum Collector Emitter Saturation Voltage: 400 mV
• Rise Time: 2.4 us
• Reverse Voltage: 25 V
• Power Dissipation: 400 mW
