SMD IC
Showing 1–12 of 19 results
 2.jpg)
-
![TP4056 1A Li-Ion Battery Charger IC]()
TP4056 1A Li-Ion Battery Charger IC
Rs. 29.00Specification:-
- Input Supply Voltage: -0.3V～8V
- Storage temperature: -0.3V～10V
- BAT Pin Current: 1200mA
- PROG Pin Current: 1200uA
- Maximum Junction Temperature: 145℃
- Operating Ambient Temperature Rang: -40 ℃～85℃
- Lead Temp.(Soldering, 10sec: 260℃
-
![MB10F 4 PIN SMD 0.8A Bridge Rectifier]()
MB10F 4 PIN SMD 0.8A Bridge Rectifier
Rs. 39.00Specification:-
- Rated Current: 0.5-0.8A
- Max Surge Current: 30A
- Forward Current (IF): 800mA
- Max Surge Current: 30A
- Operating Temperature Range:-55°C to + 150°C
- Reliable Robust Construction
- Maximum Forward Voltage (VF): 1.1V (@800mA)
-
![MB10s 4 PIN SMD 0.5A Bridge Rectifier IC]()
MB10s 4 PIN SMD 0.5A Bridge Rectifier IC
Rs. 29.00Specification:-
- Input Voltage: 50-1000V
- Maximum RMS Bridge Input Voltage: 700V
- Maximum DC Blocking Voltage: 1000V
- Maximum Average Forward Output Current: 0.5A
- Maximum Forward Voltage Drop per Bridge: 1V
- Operating Temperature Range: -55°C to + 150°C
-
![LP4056 SOP-8 TP Chips Battery Charging IC Pack of 50]()
LP4056 SOP-8 TP Chips Battery Charging IC Pack of 50
Rs. 500.00Specification:-
- Package: SOP-8
- Input Supply Voltage(VCC)：-0.3V～8V
- Programmable Charge Current Up to 1000mA
- Preset 4.2V Charge Voltage with 1.5% Accuracy
- Complete Linear Charger in SOP-8
- Constant-Current/Constant-Voltage
- No MOSFET, Sense Resistor or Blocking Diode Required
-
![MCP73831 Li-ion Battery Charger SMD IC (SOT-23 Package)]()
MCP73831 Li-ion Battery Charger SMD IC (SOT-23 Package)
Rs. 159.00Specification:-
- Voltage Supply: 7V
- Temperature Range: -40°C to +85°C
- All Inputs and Outputs w.r.t. VSS: -0.3 to (VDD+0.3)V
- Programmable Charge Current: 15 mA to 500 mA
- High Accuracy Preset Voltage Regulation: + 0.75%
-
![XDPL8105 Digital Flyback Controller SMD IC]()
XDPL8105 Digital Flyback Controller SMD IC
Rs. 119.00Specification:-
- Mounting Style: SMD/SMT
- Topology: Flyback
- Input Voltage - Min: 6 V
- Input Voltage - Max: 24 V
- Operating Frequency: 180 kHz
- Operating Temperature Range: -40°C to + 85°C
- Nominal input voltage range 100VAC – 277VAC or 127VDC – 430VDC
-

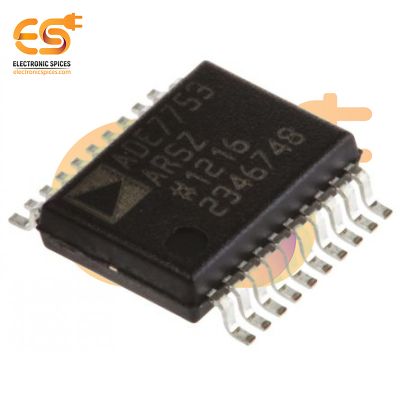

![ADE7753 Single-Phase Multi-Function Metering SMD IC]()
ADE7753 Single-Phase Multi-Function Metering SMD IC
Rs. 409.00Specification:-
- Mounting: SMD
- Number of: 20 Pins
- Reference 2.4 V with external overdrive capability
- Single 5 V supply, low power (25 mW typical)
- On-chip temperature sensor (±3°C typical)
- Interrupt request pin (IRQ) and status register
-
![TEA1104 Battery Monitor and Fast Charge SMD IC for NiCd and NiMH Chargers]()
TEA1104 Battery Monitor and Fast Charge SMD IC for NiCd and NiMH Chargers
Rs. 249.00Specification:-
- Voltage: 3.0V to 15V
- Current: 1A
- Battery Type Compatibility
- Over-Voltage Protection
- Temperature Protection
-
![ADE7757 Energy Metering SMD IC with Integrated Oscillator]()
ADE7757 Energy Metering SMD IC with Integrated Oscillator
Rs. 389.00Specification:-
- Mounting: SMD
- Number of: 16 Pins
- On-Chip Creep Protection (No Load Threshold)
- Single 5 V Supply, Low Power (20 mW Typical)
- High Accuracy, Supposes 50 Hz/60 Hz IEC 521/IEC 61036
- Less than 0.1% Error over a Dynamic Range of 500 to 1
-

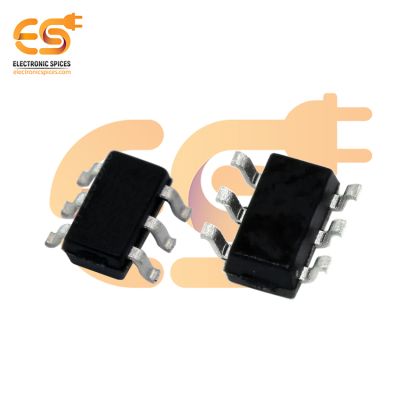

![TP223-BA6 IC (SOT23-Package) Pack of 2]()
TP223-BA6 IC (SOT23-Package) Pack of 2
Rs. 500.00Specification:-
- Operating voltage 2.0V~5.5V
- Operating current: 3V
- Startup Calibration Delay: 0.5 Sec
- Capacitance: 0~50pF
- Number of pin: 6
- Simple to Use
-
![MAX1555 Lithium Ion/Polymer USB Battery Charger SMD IC (SOT-23 Package)]()
MAX1555 Lithium Ion/Polymer USB Battery Charger SMD IC (SOT-23 Package)
Rs. 209.00Specification:-
- 5-Pin Thin SOT23 Package
- Power Dissipation: 727mW
- Lead Temperature: +300°C
- Operating Temperature Range: -40°C to +85°C
- Junction Temperature Range: -40°C to +150°C
- Storage Temperature Range: -65°C to +150°C
-
![AD736 True RMS to DC Converter SMD IC]()
AD736 True RMS to DC Converter SMD IC
Rs. 769.00Specification:-
- Mounting: SMD
- Number of: 8 Pins
- High input impedance: 1012 Ω
- Low input bias current: 25 pA maximum
- High accuracy: ±0.3 mV ± 0.3% of reading
- RMS conversion with signal crest factors up to 5
- Wide power supply range: +2.8 V, −3.2 V to ±16.5 V
- Low power: 200 µA maximum supply current
