DIODE & ZENER

SMA, SMAJ17A, 17.0V Surface Mount Transient Voltage Suppressors Rectifiers Diode pack of 5pcs

Specification

1. Case : SMA
2. Maximum respective peak reverse voltage : 17.0v
3. Maximum average rectified current : 10.9A
4. Maxim reverse current : 5.0µA
5. Maxim forward voltage : 27.6V

SMBJ9.0 600W Surface Mount Transient Voltage Suppressors Pack of 5pcs

Specification:-

1. Package : SMB/SMB(G)
2. Minimum Breakdown voltage : 10.0V
3. Maximum Breakdown voltage : 12.2V
4. Stand-off voltage : 9.0
5. Maximum reverse leakage current : 5.0
6. Maximum peak pulse current : 35.5A
7. Maximum clamping voltage : 16.9V
8. Power dissipation : 600W

MM3ZB22 300mW ,SOD-323 Packaging Diodes Pack of 5pcs

Specification:

• Power Dissipation : 300mW
• Nominal Zener Voltage : 22V
• Minimum Zener voltage : 21.56V
• Maximum Zener voltage : 22.44V
• Maximum Reverse Current : 0.1µa
• Package : SOD-323

MM1Z5227B 500mW SOD-123 Packaging Diodes Pack of 5pcs

Specification:

• Power Dissipation : 500mW
• Nominal Zener Voltage : 3.6V
• Minimum Zener voltage : 3.42V
• Maximum Zener voltage : 3.78V
• Maximum Reverse Current : 15µa
• Package : SOD-123

MM1Z5226B 500mW SOD-123 Packaging Diodes Pack of 5pcs

Specification:

• Power Dissipation : 500mW
• Nominal Zener Voltage : 3.3V
• Minimum Zener voltage : 3.14V
• Maximum Zener voltage : 3.47V
• Maximum Reverse Current : 25µa
• Package : SOD-123

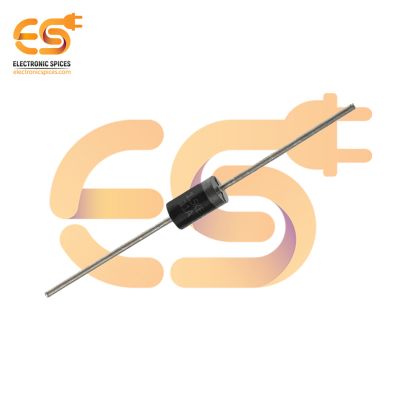

1.5KE11A 5.0µA, DO-201AD Transient Voltage Suppressor Pack of 100

Specification:

1. Minimum Breakdown voltage: 10.5V
2. Maximum Breakdown voltage: 11.6V
3. Maximum Reverse Leakage Current: 5.0µa
4. Maximum peak pulse current: 96.0A
5. Maximum clamping voltage: 15.6V
6. Maximum Temperature Coefficient of VBR: 0.075%
7. Power Dissipation: 1500W
8. Package: DO-201AD

5KP15A 10µA ,R-6 Transient Voltage Suppressor Pack of 100

Specification:

• Minimum Breakdown voltage: 16.7V
• Maximum Breakdown voltage: 18.5V
• Maximum Reverse Leakage Current: 10µa
• Maximum peak pulse current: 206A
• Maximum clamping voltage: 24.4V
• Power Dissipation: 5000W
• Package: R-6

SMBJ160A 600W Surface Mount Transient Voltage Suppressors Pack of 5pcs

Specification:-

1. Package : SMB/SMB(G)
2. Minimum Breakdown voltage : 178.00V
3. Maximum Breakdown voltage : 197V
4. Stand-off voltage : 160.0
5. Maximum reverse leakage current : 5.0
6. Maximum peak pulse current : 2.3A
7. Maximum clamping voltage : 259.0V
8. Power dissipation : 600W

SMC(G) SMCJ28 1500W Surface Mount Transient Voltage Suppressors Pack of 5pcs

Specification

1. Case : SMC(G)
2. Stand-off voltage : 28.0V
3. Maximum peak pulse current : 30.0A
4. Maxim reverse current : 5.0µA
5. Maximum clamping voltage : 50.0V
6. Power dissipation : 1500W

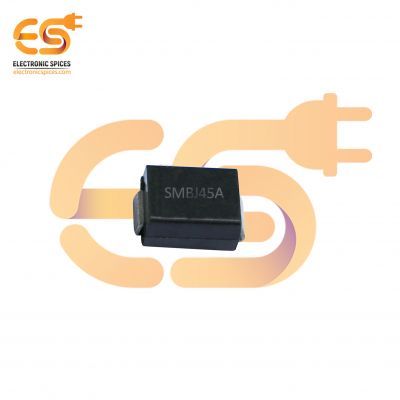

SMBJ45A 600W Surface Mount Transient Voltage Suppressors Pack of 5pcs

Specification:-

1. Package : SMB/SMB(G)
2. Minimum Breakdown voltage : 50.00V
3. Maximum Breakdown voltage : 55.3V
4. Stand-off voltage : 45.0
5. Maximum reverse leakage current : 5.0
6. Maximum peak pulse current : 8.3A
7. Maximum clamping voltage : 72.7V
8. Power dissipation : 600W

SMAJ75 400W Surface Mount Transient Voltage Suppressors Pack of 5pcs

Specification:-

1. Package : SMA/SMA(G)
2. Minimum Breakdown voltage : 83.30V
3. Maximum Breakdown voltage : 102V
4. Stand-off voltage : 75.0
5. Maximum reverse leakage current : 5.0
6. Maximum peak pulse current : 2.2A
7. Maximum clamping voltage : 134.0V
8. Power dissipation : 400W

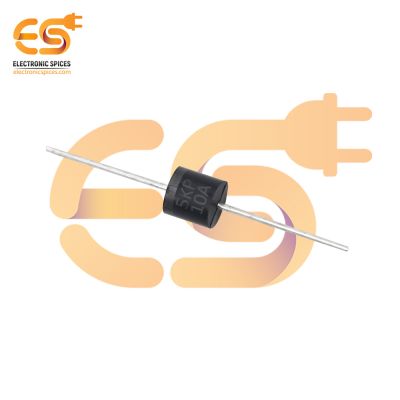

5KP10A 15µA ,R-6 Transient Voltage Suppressor Pack of 100

Specification:

• Minimum Breakdown voltage: 11.1V
• Maximum Breakdown voltage: 12.3V
• Maximum Reverse Leakage Current: 15µa
• Maximum peak pulse current: 294A
• Maximum clamping voltage: 17.0V
• Power Dissipation: 5000W
• Package: R-6
