ALL ELECTRONICS COMPONENTS

Dust Cap Bass Soft Dome Speaker Repair Parts 3 inch Pack of 10

Specification

1. Design:     Plain
2. Material:   Cotton
3. Size:         3 inch
4. color:         black
5. Item Type: Speaker dust cap

Viper22A GF138022 SMPS power supply controller DIP 8 pins IC pack of 10pcs

Specifications

1. SMPS switching controller IC
2. AC to DC converter
3. Operating voltage : 9V to 30V
4. Oscillator frequency  :  60 kHz typically
5. Mosfet drain to source voltage :  730V
6. Off-state drain current:  0.1mA

1 ohm ( Ω ) 10 watt Fusible ceramic cement power resistor pack of 5pcs

Specifications

1. Resistance : 1 ohm (Ω)
2. Tolerance : 5%
3. Resistor type : fusible ceramic cement power resistor
4. Power rating : 10W
5. Can withstand in high-energy and high-voltages at high temperatures
6. Reliable and offers a long service life

1.0μF 105J 400V CBB22 Metallized Polypropylene Film Capacitor Pack of 5pcs

Specification:-

1. Rated voltage : 400V
2. Dimensions = 30.0mm(W)
3. Dimensions = 23.0mm(H)
4. Dimensions = 13.0mm(T)
5. Dimensions = 25.0mm(P)
6. Standard  =  GB 10190 (IEC 384-16)
7. Capacitance Tolerance = ±5%(J), ±10%(K),
8. Insulation Resistance = > 25000M Ω

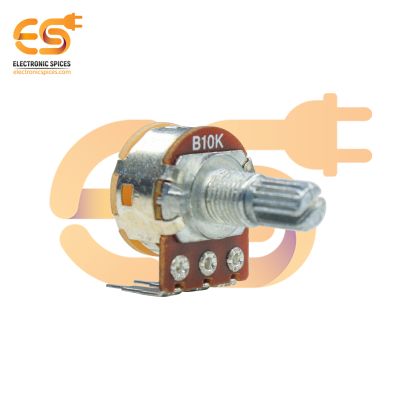

B10K Split Rotary potentiometer round shaft handle 3 pin

Specification

• Type : Single-turn rotary potentiometer
• Resistance value : 10K ohms
• Power rating : 3W
• Shaft : 5 mm round shaft
• Tolerance: ±5%
• Rotational Life :  2000K cycles

BT136-600D Transistor TRIAC 600V 4A pack of 5pcs

Specifications

1. Maximum terminal current: 4A
2. On-state gate voltage: 1.4V
3. Gate trigger current: 10mA
4. Max terminal voltage: 600 V
5. Holding current: 2.2mA
6. Latching current: 4mA
7. Package includes: 5 pieces

UC3842AN Current mode PWM controller DIP 8 pin IC pack of 2pcs

Specification

1. Input voltage  : 30V
2. Output voltage : 5V
3. Output current : 1A
4. Number of pins : 8 pins
5. Frequency range : 500 KHz

100K 360 degree Rotary encoder potentiometer D shape shaft handle 5 pin M274 pack of 1pcs

Specification

1. Type : 360° Rotary encoder
2. Resistance value : 100K
3. Power rating : 1W
4. Shaft : 7 mm D shape shaft
5. Maximum Input Voltage  :  200Vdc
6. Rotational Life :  2000K cycles

IRF3205 55V 110A N-channel power mosfet

Specification

1. Type                                   N channel
2. Drain- source voltage          55V
3. Gate-source voltage            ±20V
4. Drain current                       110A
5. Power Dissipation                200W

D6283 6 watt dual channel audio amplifier SIP 12 pin IC pack of 2pcs

Specification

1. 6-watt dual-channel audio amplifier
2. Type: SIP
3. Number of pins: 12
4. Operating voltage: 6V to 15V
5. Output current: 2.5A
6. Power dissipation: 12.5W
7. Short circuit and thermal shutdown protection

2M ohm ( Ω ) vertical preset variable resistors ( 205 ) pack of 50pcs

Specifications:-

1. Type : Preset variable resistor (trimpot)
2. Resistance value : 2M Ω
3. Max. operating voltage : 50V DC
4. Rotation                           : single turn
5. Resistance Tolerance    : ±30%
6. Rotational cycles            : 20 cycles

NE555P Precision timer DIP 8 pin IC chip pack of 2pcs

Specification

1. Supply voltage  : 5V to 16V
2. Supply current : 3 to 6 mA
3. Output current : 200mA
4. Power dissipation : 600W
5. Accurate time delays and oscillation
