RELAY

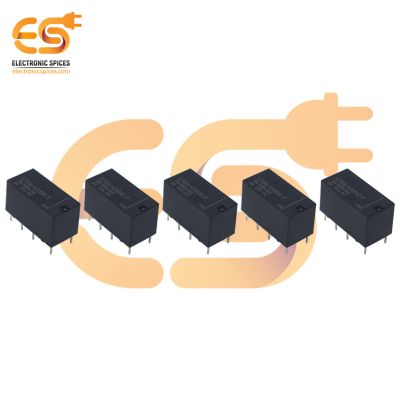

120V AC to 24V DC 2A 6 Terminal LT2S-12VDC-T Subminiature DPDT PCB panel mount power relay pack of 5pcs

Specifications

1. Operating voltage : 12V to 24V DC
2. Maximum voltage : 120V AC
3. Max. operating voltage : 2A
4. Supply current : 0.2A
5. 2 Form C configuration.
6. Bifurcated contacts.
7. Epoxy-sealed.

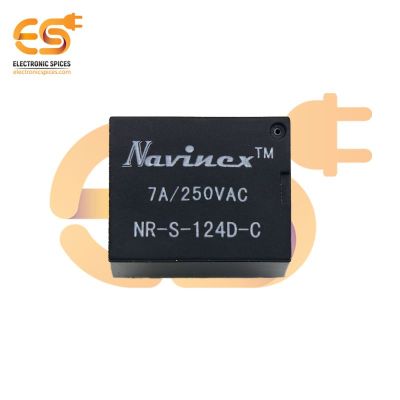

24V 7A Sugar cube relay 5 pin pack of 2pcs

Specifications

1. Trigger voltage : 24V
2. Nominal current : 15mA
3. Maximum AC load current : 10A
4. Maximum DC load current : 10A
5. Maximum switching : 300 operating/minute
6. Compact 5-pin configuration

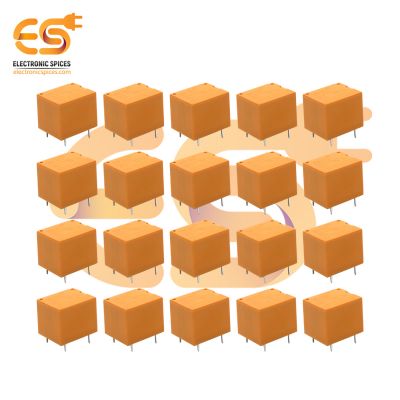

12V 7A Sugar cube relays 5 pins pack of 100pcs

Specifications

1. Trigger voltage : 12V
2. Nominal current : 30mA
3. Maximum AC load current : 10A
4. Maximum DC load current : 10A
5. Maximum switching : 300 operating/minute
6. Compact 5-pin configuration

SSR-40DA 3V-32V DC 40A solid state relays pack of 10pcs

Specifications

1. Load current rate: 40A
2. Trigger voltage: 3V to 32V
3. Switching voltage : 24V to 480V AC at 40A
4. Type: DC to AC single phase
5. Maximum offset time: 10ms

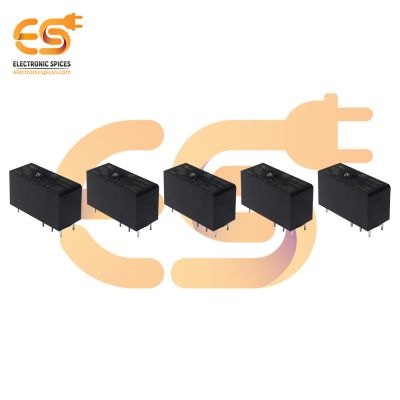

12V DC 250V AC 16A 6 Terminal NO HF115F-I/012-1HS3A Switching current PCB panel mount power relay pack of 5pcs

Specifications

1. Rated voltage : 250V AC
2. Max. switching voltage : 400V AC
3. Rated current : 16A
4. Limiting continuous current : 12A
5. Operate/release time max. : 8/6ms

5V 7A Sugar cube relay 5 pins pack of 10pcs

Specifications

1. Trigger voltage : 5V DC
2. Nominal current : 70mA
3. Maximum AC load current : 10A
4. Maximum DC load current : 10A
5. Maximum switching : 300 operating/minute
6. Compact 5-pin configuration

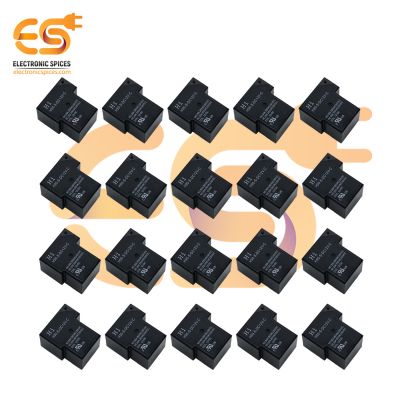

12V 30A T shape Power relays H90-S-DC12V 6 pins pack of 100pcs

Specifications

1. Rating voltage : 12V
2. Normal open current : 30mA
3. Normal close current : 20mA
4. Maximum switching : 300 operating/minute
5. Compact 6-pin configuration

12V 30A Sugar cube Power relays HRG91-S-DC12V 5 pin pack of 10pcs

Specifications

1. Rating voltage : 12V
2. Normal open current : 40mA 250VAC/30VDC
3. Normal close current : 30mA 250VAC/30VDC
4. Maximum switching : 300 operating/minute
5. Compact 5-pin configuration

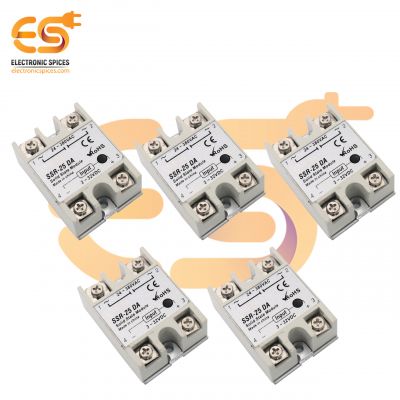

SSR-25DA 3V-32V DC to 24V-380V AC 25A Solid state relay module pack of 5pcs

Specifications

1. Load current rate : 25A
2. Trigger voltage : 3V to 32V
3. Switching voltage : 24V to 380V AC at 25A
4. Type : DC to AC single phase
5. Maximum offset time : 10ms

15A 125/250V 50/60Hz DC Automatic Reset Relay Fuse Current Overload Protector

Specifications:-

• Current Rating: 15A
• Voltage: 12V
• High-Amperage Compatibility
• Reliable Relay Fuse Design
• Simple Installation

SSR-25DA 3V-32V DC 25A solid state relays pack of 10pcs

Specifications

1. Load current rate : 25A
2. Trigger voltage : 3V to 32V
3. Switching voltage : 24V to 480V AC at 25A
4. Type : DC to AC single phase
5. Maximum offset time : 10ms

12V DC 250V AC 16A 6 Terminal NO HF115F-I/012-1HS3A Switching current PCB panel mount power relay pack of 1pcs

Specifications

1. Rated voltage : 250V AC
2. Max. switching voltage : 400V AC
3. Rated current : 16A
4. Limiting continuous current : 12A
5. Operate/release time max. : 8/6ms
