CH341A 24 25 Series EEPROM Flash BIOS USB Programmer with Software & Driver

Specification:-

• Power Supply: USB-powered
• Model: CH341A 24 25 Series
• Provide 5V-3.3V power supply output
• Dimensions: Compact and portable design
• Support: 24 EEPROM and 25 SPI flash 8pin or 16pin chip

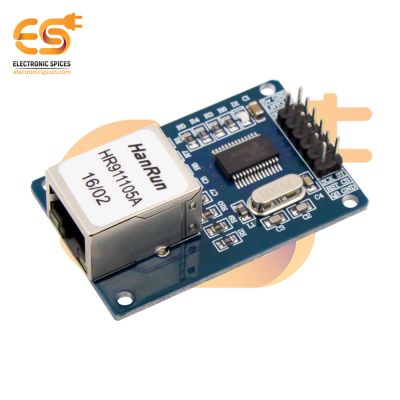

ENC28J60 Ethernet Module 12-Pin

Specification:-

• 25MHz Crystal
• 5 V power supply pin
• Driver IC : ENC28J60-I/SO
• Ethernet Port: HanRun HR911105A
• Compatible For Arduino, SPI, AVR, PIC, LPC, STM32

Pin Configuration:

• 5V: 5V power supply
• GND: Ground
• LNT: Interrupt pin
• CLK: Clock output from ethernet controller
• SO: SPI Output
• WOL: Wake-on-LAN (optional)
• SCK: SPI Clock
• ST: SPI Input
• RST: Reset pin
• CS: Chip Select
• Q3:  that this is the RX 3.3V supply
