CONNECTORS

FRD2-156 10A 16-14 AWG wire gauge Blue color hard plastic insulated Female bullet crimp connector pack of 20pcs

Specifications

1. 100% Genuine and new product
2. Type  :  Female bullet connector
3. Wire gauge  :  16-14 AWG
4. Voltage rating  :  300V to 415V AC
5. Highly insulated
6. Tin plated body
7. Good conductor of electricity
8. Easy to connect

DE-9 9 through hole Right angle PCB mount D-sub miniature female connectors pack of 10pcs

Specification

1. Connector type : DE-9
2. Connector gender : female
3. Pin angle : 90°
4. Voltage rating : 220V to 250V AC
5. Current rating : 3A
6. Number of rows : 2
7. Number of holes : 9 ( 5+4)
8. Contact resistance : 20mΩ

Male and Female pair of 7 pin 5.08mm pitch pluggable terminal block connector pack of 5 pair (2EDGR-5.08-7P and 2EDGK-5.08-7P)

Specification

1. Body material  :  Nylon 66
2. Metal use  :  phosphor bronze
3. Pitch spacing  :  5.08mm ( both )
4. Number of holes and pins  :  7
5. Type of connector  :  Pluggable terminal block
6. Rated voltage  :  320V
7. Current rating  :  20A
8. Package contains  :  5 pairs (5 pieces of male + 5 pieces of female)

GX16 5 pins 5A Male and Female metal aviation connectors pack of 20 pair

Specification

1. Connector type  :  GX16
2. Number of pins  :  5
3. Working voltage range  :  200V to 250V
4. Rated current  :  5A
5. Coupling type  :  thread
6. Contact material  :  copper
7. Metal body with nickel plating
8. Robust
9. Package includes : 20 pair ( 20 Male connector + 20 Female connector )

HM-PCT-224 4-Way Terminal Block 450V/32A Splicing Lever Wire Quick Connector

Specification :-

• Model: HM-PCT-224
• Rated voltage: 450V
• Rated current: 32A
• Wire diameter: 0.5-4mm2
• Voltage resistance: 4kV
• Ambient temperature: -40℃~+105℃
• Strip length: 11-12mm
• The number of poles: 4P

2mm 5A ,30V Black color Female socket banana connector pack of 50pcs

Specification

1. Type : Female socket banana connector
2. Current rating : 5A
3. Voltage rating : 30V
4. Contact material : copper
5. Nickel plating
6. Highly insulated with polyethylene material
7. Larger contact surface for better and stable performance

2EDGR-5.08-2P 2 pin 5.08mm pitch Pluggable Male terminal block connectors pack of 50pcs

Specification

1. Body material:  Nylon 66
2. Pin material:  phosphor bronze
3. Pitch spacing  :  5.08mm
4. Number of pin  :  2
5. Type of connector  :  Male pluggable
6. Rated voltage  :  320V
7. Current rating  :  20A
8. Package contains  :  50 pieces of male connectors

DB-25 25 through hole D-sub miniature female connector with backshell pack of 20pcs

Specification

1. Connector type : DB-25
2. Connector gender : female
3. Voltage rating : 220V to 250V AC
4. Current rating : 3A
5. Number of rows : 2
6. Number of holes : 25 (13+12)
7. Contact resistance : 20mΩ
8. Hard thermoplastic backshell is also included

2mm 5A Red color Male plug banana connector pack of 5pcs

Specification

1. Type : Male plug banana connector
2. Current rating : 5A
3. Voltage rating : 30V
4. Pin diameter : 2mm
5. Contact material : copper
6. Nickel plating
7. Highly insulated with polyethylene
8. Larger contact surface for better performance

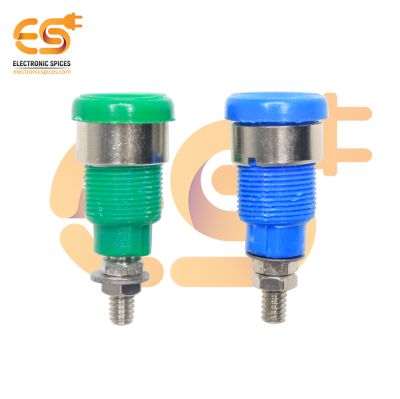

4mm 15A Green color Female socket banana connector

Specification :

• Type: Female socket banana connector.
• Contact material: copper + plastic.
• Current rating: 15A.
• Nickel plating.
• Highly insulated with polyethylene material.
• Larger contact surface for better and more stable performance.

Mini Female berg strips connector pack of 100 stick

Specifications

1. Connector: Pin Header
2. Connector type: Pin Strips female
3. Number of pins: 40
4. Pin Length: 3 mm
5. Pitch: 2 mm
6. Package includes : 100 Female berg strip connectors (40 pins each)

Single end 4 pin Female to Female Relimate wire connector

Specification:-

• Current rating: 3A AC/DC.
• Voltage ratio: 24V AC/DC.
• Temperature range: -25℃ to +85 ℃
• Material: Copper-tin
• Contact resistance: 10mΩ Max.
• Insulation resistance: 1000MΩ
