CONNECTORS

SD28 9-pin Docking Waterproof Male & Female Aviation Connector

Specification:-

• Connector type: SD28
• Current Rating: 5A
• Voltage Rating: 250VAC
• Number of Pins: 9Pin
• Protection: IP68

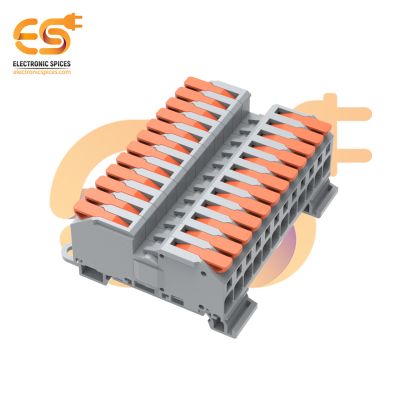

HM-LT-4FFD-12 pole Terminal Block Splice 450V/32A Quick Connector

Specification:-

• Model: HM-LT-4FFD-12
• Rated voltage: 450V
• Rated current: 32A
• Wire diameter: 0.5-4mm²
• Voltage resistance: 4kV
• Ambient temperature: -40℃~+105℃
• Strip length: 11-12mm
• The number of poles: 12P

LT-PTF2.5-8 pole Multi-in & Multi-out 450V/32A Rail Terminal Connector

Specification:-

• Model: LT-PTF2.5
• Rated voltage: 450V
• Rated current: 32A
• Wire diameter: 0.5-4mm²
• Voltage resistance: 4kV
• Ambient temperature: -40℃~+105℃
• Strip length: 11-12mm
• The number of poles: 8-P

GX20 7-pin 5A Male and Female Metal Aviation Connector Pack of Single Pair

Specification:-

• Connector type: GX20
• Number of pins: 7
• Rated current: 5A
• Working Voltage: 400V
• Material: Nickel Plating Copper

2510 4-Pin XH JST Female Wire Connector

Specification:-

• Current Rating: 3A
• Voltage Rating: 250V
• Pitch: 2.54mm
• Wire size: 30 to 22AWG
• Temperature range : -25°C to +85°C

EU-413 Terminal Block 250V/24A 3-Wire Splicing Connector

Specification:-

• Model: EU-413
• Rated voltage: 250V
• Rated current: 24A
• Wire diameter: 0.5-2.5mm²
• Voltage resistance: 4kV
• Ambient temperature: -40℃~+105℃
• Strip length: 10-12mm
• The number of poles: 3P

HM-LT-02-08 Terminal Block Splice 250V/32A Quick Connector

Specification:-

• Model: HM-LT-02-08
• Rated voltage: 250V
• Rated current: 32A
• Wire diameter: 0.5-4mm²
• Voltage resistance: 4kV
• Ambient temperature: -40℃~+105℃
• Strip length: 11-12mm

HM-LT-04F Quick Connection 450V/32A Terminal Block Wire Connector

Specification:-

• Model: HM-LT-04F
• Rated voltage: 450V
• Rated current: 32A
• Wire diameter: 1-6mm²
• Voltage resistance: 4kV
• Ambient temperature: -40℃~+105℃
• Strip length: 11-12mm

15EDGV-3.81-3P Male Terminal Block Connector Pack of 50

Specification:-

• Contacts pitch: 3.81mm
• Poles: 2 Pin
• Connector: Plug
• Current Rating: 8A
• Voltage Rating: 300V
• Ambient Temperature: -40°C ~ +105°C
• Insulation Resistance: 500MΩ/DC500V
• Termination: PCB Mount Terminal Block

0.25M Type-C to USB Fast Charging Cable 65W 3.1A, Red TPE Short Cable

Specification:

1. Type C Cable
2. Total length: Approx. 0.25 Meter
3. Material: TPE soft wire
4. Current Rating: 3.1A
5. Charging Power: Up to 65W
6. Fast Charging
7. Long-Lasting Performance
8. High-speed data transfer

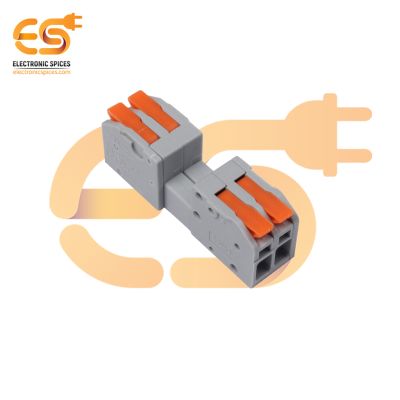

LT-2604D-2 Terminal Block Splice 250V/32A Quick Connector

Specification:-

• Model: LT-2604D-2
• Rated voltage: 250V
• Rated current: 32A
• Wire diameter: 0.2-4mm²
• Voltage resistance: 4kV
• Ambient temperature: -40℃~+105℃
• Strip length: 11-12mm
• The number of poles: 3-P

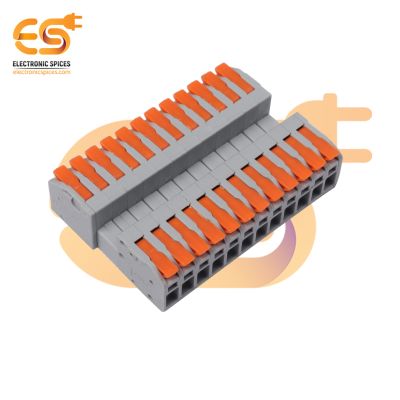

LT-2604D-12 Terminal Block Splice 250V/32A Quick Connector

Specification:-

• Model: LT-2604D
• Rated voltage: 250V
• Rated current: 32A
• Wire diameter: 0.2-4mm²
• Voltage resistance: 4kV
• Ambient temperature: -40℃~+105℃
• Strip length: 11-12mm
• The number of poles: 12-P
