SWITCHES

16 mm 12-24V Ring Light Push Button Horn type Metal Switch with Yellow Indicator and Power Icon

Specifications:-

• Operating Voltage: 12VDC
• Light Color: Yellow
• Operating Current: 2A
• Number of pins: 5
• IP rating: IP65
• Waterproof And Dustproof
• Mounting Hole Diameter: 16 mm
• Body Material: Stainless Steel and Plastic

6x6x4.3mm 2 Pin Right Angle Push Button Momentary Tactile Switch Pack of 10

Specification:-

• Type: Right Angle
• Mounting Type: Through Hole, Right Angle
• Insulation: >100 MΩ
• Number of pin : 2
• Size: 6 x 6 x 4.3 mm
• Power Rating: MAX 50mA, 24V DC
• Operation life: 100,000 cycles
• Operation Mode: Push button

12mm Red Push Button Switch | SPST | Momentary | AC 125V 3A / AC 250V 1.5A | Self-Lock Pack of 5

Specification:-

• Type: SPST (Single Pole Single Throw)
• Function: Momentary/Self-Locking
• Mounting Hole Diameter: 12mm
• Voltage Rating: AC 125V 3A / AC 250V 1.5A
• Color: Red
• Lightweight & Compact

22 mm 12-24V Ring Light Push Button Horn type Metal Switch with White Indicator

Specifications:-

• Operating Voltage: 12VDC
• Light Color: White
• Operating Current: 3A
• Number of pins: 5
• IP rating: IP65
• Waterproof And Dustproof
• Mounting Hole Diameter: 22 mm
• Body Material: Stainless Steel and Plastic

19mm 12-24V Ring Light Push Button Self Lock Metal Switch with Green Indicator and Power Icon

Specifications:-

• Operating Voltage: 12VDC
• Light Color: Green
• Operating Current: 3A
• Number of pins: 5
• IP rating: IP65
• Waterproof And Dustproof
• Mounting Hole Diameter: 19 mm
• Body Material: Stainless Steel and Plastic

KCD1 T125 6A 250V AC Red Color Heavy Duty Copper 2-Pin Rocker Switch Pack of 10

Specification:-

• Power Source: AC
• Operation mode: ON-OFF
• Type:  single pole, single throw
• Max. current withstand:  250V
• Max. power rating:  6A
• Long life approximately 10,000 clicks

16mm 5 Pin Metal Push Button Switch Wire Socket Connector Pack of 50

Specifications:-

• Operating Current: 2A
• Operating Voltage: 12VDC
• No. of Pins: 5 pin
• Mounting Hole: 16mm
• Material: Plastic, Metal
• Waterproof, Dust-Proof

22 mm 12-24V Ring Light Push Button Horn type Metal Switch with Green Indicator

Specifications:-

• Operating Voltage: 12VDC
• Light Color: Green
• Operating Current: 3A
• Number of pins: 5
• IP rating: IP65
• Waterproof And Dustproof
• Mounting Hole Diameter: 22 mm
• Body Material: Stainless Steel and Plastic

T85/55 6A 250V Black Color 2 Pin Rocker Switch Pack of 5

Specification:-

• Type: single pole, changeover, or triple throw
• Max. current withstand:  250V
• Max. power rating:  6A
• It offers on/off switching one at a time
• High temperature withstand
• Long life approximately 10,000 clicks
• High wear and tear properties
• Durable and excellent design

PTS-09 2 pins ON/OFF right sides output 1A 30V self lock tactile switches pack of 100pcs

Specification

1. Mode of operation: SPST simple ON/OFF
2. Power rating: 1A 30V
3. Right side output pin
4. Dimension of the switch : 12mm x 12mm x 9mm
5. Insulation Resistance   :  100M ohm (Ω)
6. Operating Force  :  2.55±0.69 N
7. Durable construction
8. Long lasting

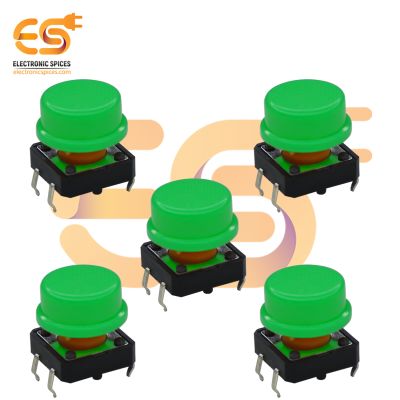

12x12x7.3mm Tactile Push Button Switch with Green Round Cap (5pcs each)

Specifications:-

• Operating Voltage: 12VDC
• Operating Current: 50 mA
• On/Off Function: Push to ON
• Switch Type: Momentary
• Mounting Type: Through-hole
• Mechanical life: 100000 cycles
• Operating Temperature Range: -20°C to +70°C

White SPST Halfway Rocker button Inline switch Pack of 100

Specifications:-

• 100% Original and best quality product
• Type:  Single pole, Single throw (SPST)
• Max. current withstand:  230V
• Max. power rating:  5A
• It offers an on/off switch
• High temperature withstand
• Long life approximately 10,000 clicks
