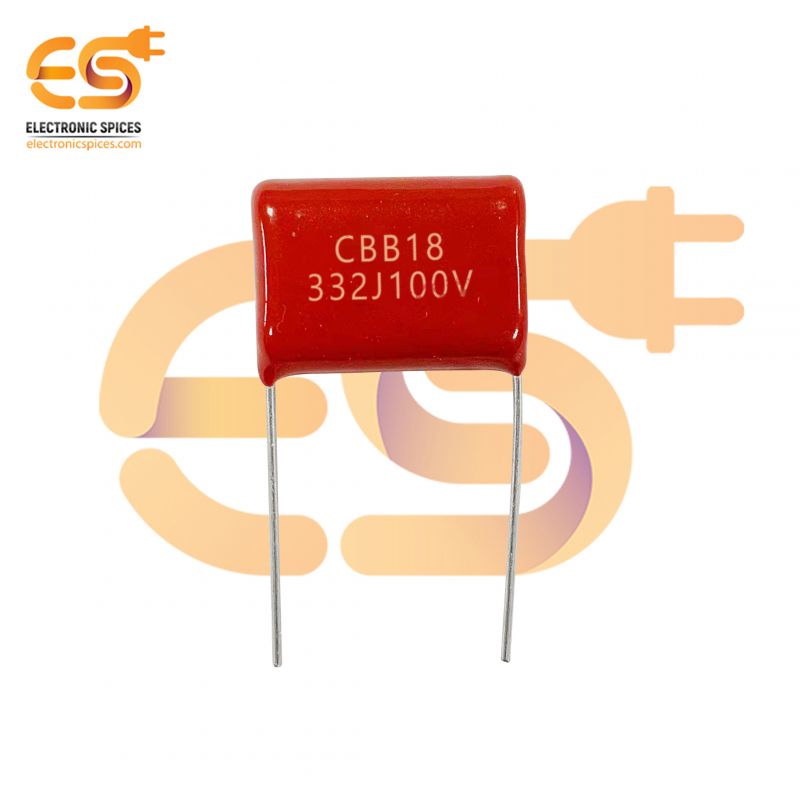

0.0033μF 332J 100V CBB18 Polypropylene Film Capacitor Pack of 5pcs
Specification:-
- Rated voltage : 100V
- Dimensions = 11.0mm(W)
- Dimensions = 10.0mm(H)
- Dimensions = 6.0mm(T)
- Dimensions = 5.5mm(P)
- Dimensions = 0.5(d)
- Standard = GB10188 (IEC384-13)
- Climatic Category = 40/085/21
- Dissipation Factor = ≤ 0.0008 (20°C, 1KHz)
SKU: ZF8533E
0.0033μF 332J 100V CBB18 Polypropylene Film Capacitor Pack of 5pcs
Polypropylene capacitors and CBB18 capacitors. With good high-frequency insulation performance, capacitance and loss are not affected by frequency over a wide frequency range when temperature changes little. Also, dielectric strength rises with temperature, which is not possible with other dielectric materials. It has a low absorption rate and a high temperature resistance. It works best for fixing S-shapes and high-frequency, large-current circuits in TVs. A lot of high-frequency, high-voltage, DC, and pulse circuits use it. Used in electrical lighting ballasts and high-voltage power supplies of high-frequency and high-pulse rise time circuits. In this case, the product is a great example of one that looks simple but does its job very well. It is made of polypropylene film, which is good at moving power around. There is a ceramic barrel that holds this film inside. This helps the capacitor store electricity better. Aside from power supplies in computers and audio tools, this capacitor can be used for a lot of different things.
Features:
- High reliability
- Self-healing property
- Feature radial leads
- Dip-through hole mounting
- Best Quality Product
