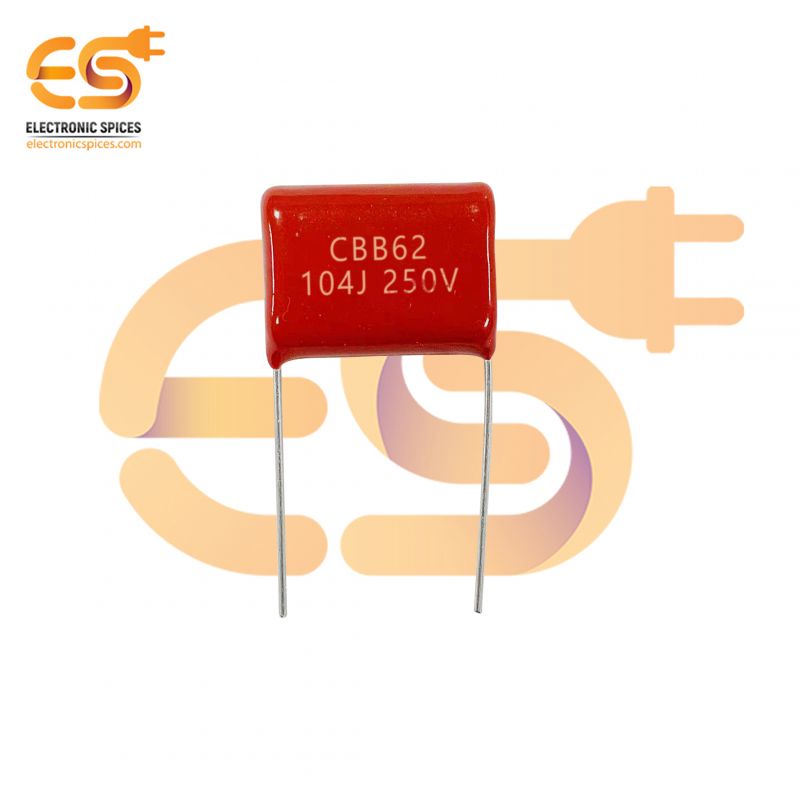

0.10μF 104J 250VAC CBB62 Metallized Polypropylene Film Capacitor Pack of 5pcs
Specification:-
- Rated voltage : 250VAC
- Dimensions = 25.0mm(W)
- Dimensions = 15.5mm(H)
- Dimensions = 10.0mm(T)
- Dimensions = 20.0mm(P)
- Dimensions = 0.8(d)
- Reference Standard = GB/T 14472-98 (IEC 384-14)
- Climatic Category = 40/085/21
- Dissipation Factor = ≤ 0.001 (1kHz, 20°C)
SKU: LH8533E
0.10μF 104J 250VAC CBB62 Metallized Polypropylene Film Capacitor Pack of 5pcs
The characteristics of CBB62 include low spoilage, high outer electric resistance, high voltage endurance, and good self-healing properties. utilized mostly in AC-in networks, AC and impulse circuits of devices, as a voltage-reducing component in AC circuits, and particularly in a variety of low-cost lights and electronic rectifiers. The material used to make this capacitor is metalized polypropylene. Both the aluminum dielectric and the aluminum electrolyte are coated in aluminum. Its metallized polypropylene film capacitor, non-inductive wound construction, and self-healing effect are intended to shield electronic equipment from damage caused by static and ESD. Ideal for AC applications where minimal loss and a slight intrinsic temperature rise are crucial. This item is a long-lasting, highly conductive, and flexible film capacitor. Low-voltage electronic devices like toys, instruments, and household appliances are perfect for using it. The film capacitor is a good option for general electronics applications because of its sturdy construction.
Features:
- Very small loss, excellent frequency and temperature characteristics, and high insulation resistance.
- Reliable quality due to self-healing effect.
- As an across-the-line type noise suppression capacitor and suitable for AC purposes.
- Withstanding 2.5 kV impulse voltage, Class X2
- Flame-retardant epoxy resin coating (UL94/V-0)
