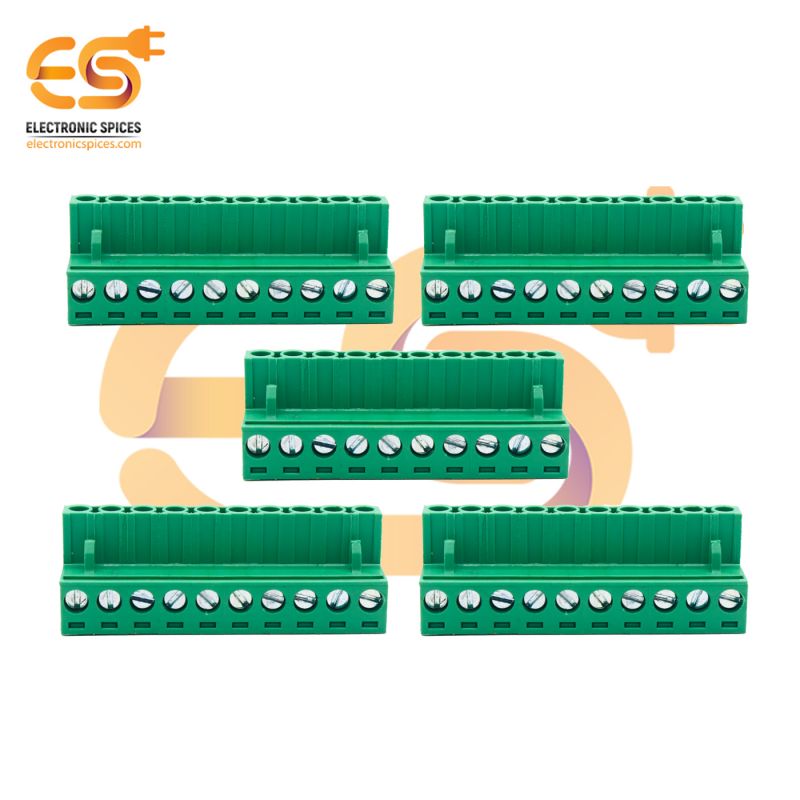

2EDGK-5.08-10P 10 hole 5.08mm pitch Pluggable Female terminal block connector pack of 5pcs
- Body material : Nylon 66
- Screw material : phosphor bronze
- Pitch spacing : 5.08mm
- Number of holes : 10
- Type of connector : Female pluggable
- Rated voltage : 320V
- Current rating : 20A
- Package contains : 5 pieces of female connector
SKU: 8893HV
2EDGK-5.08-10P 10 hole 5.08mm pitch Pluggable Female terminal block connector pack of 5pcs
These are mini female connectors. They are lightweight and highly insulated for short circuit protection. They are built from Nylon 66 material. These connectors have 10 cable entries for connecting wire and cables easily. These connectors have phosphor bronze screws that hold the wire tightly by pulling a metal plate attached at the end. After the wires have been attached, These connectors need to connect to male connectors to establish a strong path. These types of connectors are very useful in hot-swapping types of applications. In other words, They are used where the connection may be expected to be removed for servicing or any other purposes.
Package includes
This is the pack of 5 pieces of 2EDGK-5.08-10P 10 hole 5.08mm pitch Pluggable Female terminal block connector
Features
- They are very lightweight and tough
- They are easy to install and also compatible with 5.08 pitch size male connectors
- High quality phosphor bronze screws and plates hold the wire tightly.
- Highly insulated for protection
