TERMINAL BLOCK CONNECTOR

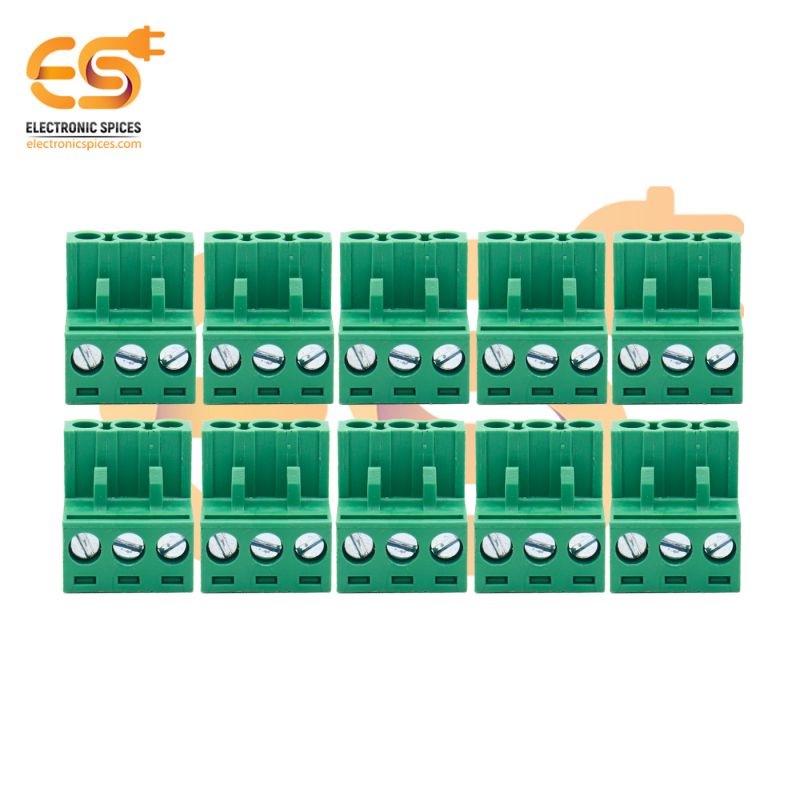

2EDGK-5.08-3P 3 hole 5.08mm pitch Pluggable Female terminal block connectors pack of 20pcs

Specification

  1. Body material  :  Nylon 66
  2. Screw material  :  phosphor bronze
  3. Pitch spacing  :  5.08mm
  4. Number of holes  :  3
  5. Type of connector  :  Female pluggable
  6. Rated voltage  :  320V
  7. Current rating  :  20A
  8. Package contains  :  20 pieces of female connectors
Available in Pack Of:

SKU: 8872HV

MRP Rs. 205.85
Rs. 179.00 (Incl. Tax)
Rs. 151.69 (+18% GST extra)
Rs. 151.69 / pack of 20 = Rs. 7.58 per piece
Buy to Get ₹0 off!
₹0 Special Discount Applied
Quantity
Add to Cart

2EDGK-5.08-3P 3 hole 5.08mm pitch Pluggable Female terminal block connectors pack of 20pcs

These are mini female connectors. They are lightweight and highly insulated for short circuit protection. They are built from Nylon 66 material. These connectors have 3 cable entries for connecting wire and cables easily. These connectors have phosphor bronze screws that hold the wire tightly by pulling a metal plate attached at the end. After the wires have been attached, These connectors need to connect to male connectors to establish a strong path. These types of connectors are very useful in hot-swapping types of applications. In other words, They are used where the connection may be expected to be removed for servicing or any other purposes.

Package includes

This is the pack of 20 pieces of 2EDGK-5.08-3P 3 hole 5.08mm pitch Pluggable Female terminal block connector

Features

  1. They are very lightweight and tough
  2. They are easy to install and also compatible with 5.08 pitch size male connectors
  3. High quality phosphor bronze screws and plates hold the wire tightly.
  4. Highly insulated for protection
