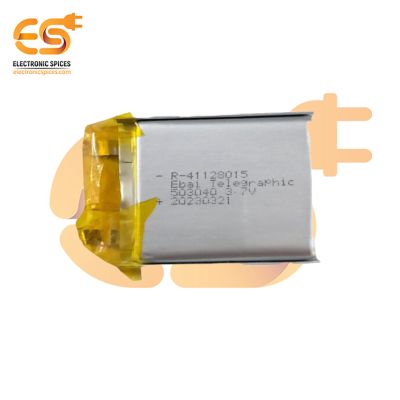

500mAh 3.7V Li-ion Polymer Cell with BMS (503040)
Specification:-
- Rated Capacity: 500mAh
- Nominal Capacity: 500mAh
- Min. Capacity: 450mAh
- Normal Voltage: 3.7V
- Limited Charging Voltage: 4.2V
- Standard Charging Current: 100mA (0.2C)
- Cell Weight: ≈ 10g
- Cell Initial Impedance: ≤80 mΩ
SKU: HF8506A
500mAh 3.7V Li-ion Polymer Cell with BMS (503040)
The 500mAh 3.7V Li-ion Polymer Cell (503040) with Built-in BMS is a high-quality rechargeable battery designed for compact and portable electronic applications. With a nominal capacity of 500mAh and a voltage of 3.7V, this lightweight battery delivers reliable performance and is perfect for devices like wearable electronics, IoT devices, small robotics, Bluetooth gadgets, and handheld medical equipment. The cell's 503040 form factor (5mm x 30mm x 40mm) makes it ideal for space-constrained designs, enabling seamless integration into slim and lightweight devices. Its built-in Battery Management System (BMS) provides essential safety features, including protection against overcharging, over-discharging, overcurrent, and short circuits. These safeguards ensure the battery operates efficiently and prolong its lifespan, making it a dependable choice for critical applications. With a high energy density and low self-discharge rate, this Li-ion polymer cell offers excellent energy retention during extended storage periods. It supports up to 500 charge-discharge cycles, ensuring durability and cost-effectiveness over time. Additionally, the battery's eco-friendly and recyclable materials align with sustainable design practices.
Features:-
- High Capacity
- Long Cycle Life
- Low Self-Discharge
- Compact Design
- Fast Charging Support
- Wide Application Range
