LOGIC IC

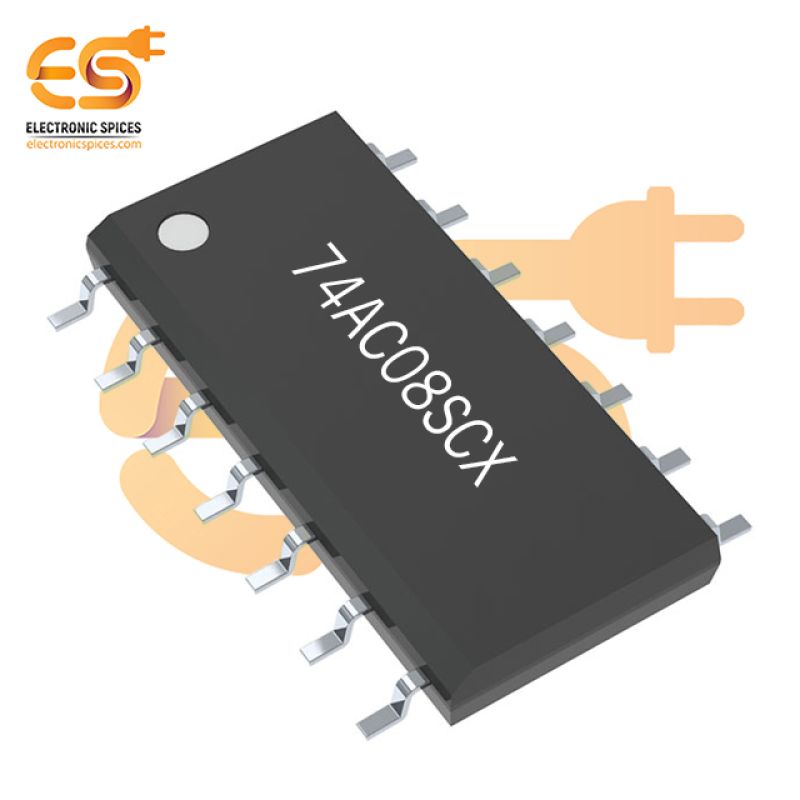

74AC08SCX AND Gate Logic IC 4 Channel 14-SOIC

Specification:-

  • Package/Case: SOIC14 (0.154", 3.90mm)
  • Mounting Style: SMD/SMT
  • Number of Gates: 4 Gate
  • Low Level Output Current: 24 mA
  • High Level Output Current: 24 mA
  • Propagation Delay Time: 5.5 ns
  • Supply Voltage - Min: 2 V
  • Supply Voltage - Max: 6 V
Available in Pack Of:

SKU: KE8541A

MRP Rs. 740.00
Rs. 500.00 (Incl. Tax)
Rs. 423.73 (+18% GST extra)
Rs. 423.73 / pack of 1 = Rs. 423.73 per piece
Buy to Get ₹0 off!
₹0 Special Discount Applied

74AC08SCX AND Gate Logic IC 4 Channel 14-SOIC

The 74AC08SCX is a high-performance 4-channel AND gate logic IC designed for modern digital circuits requiring fast operation and low power consumption. Each of its four independent AND gates performs a logical conjunction operation, outputting a high signal only when all corresponding inputs are high. This functionality makes it essential for applications where precise logical control is required. Housed in a compact 14-pin SOIC (Small Outline Integrated Circuit) package, the 74AC08SCX is ideal for surface-mount technology (SMT), enabling efficient use of space in densely populated printed circuit boards (PCBs). Its advanced CMOS technology ensures high-speed performance, with low propagation delay, making it suitable for high-frequency applications. The IC operates within a wide voltage range of 2V to 6V, offering compatibility with various digital systems. This IC is robust, with a low static power dissipation characteristic, ensuring energy efficiency in electronic devices. Its high noise immunity safeguards reliable operation in environments with electrical interference, making it suitable for industrial, automotive, and consumer electronics.

Features:-

  • 4-Input AND Gate
  • Low Power Consumption
  • High-Speed Operation
  • Compact 14-SOIC Package
