LOGIC IC

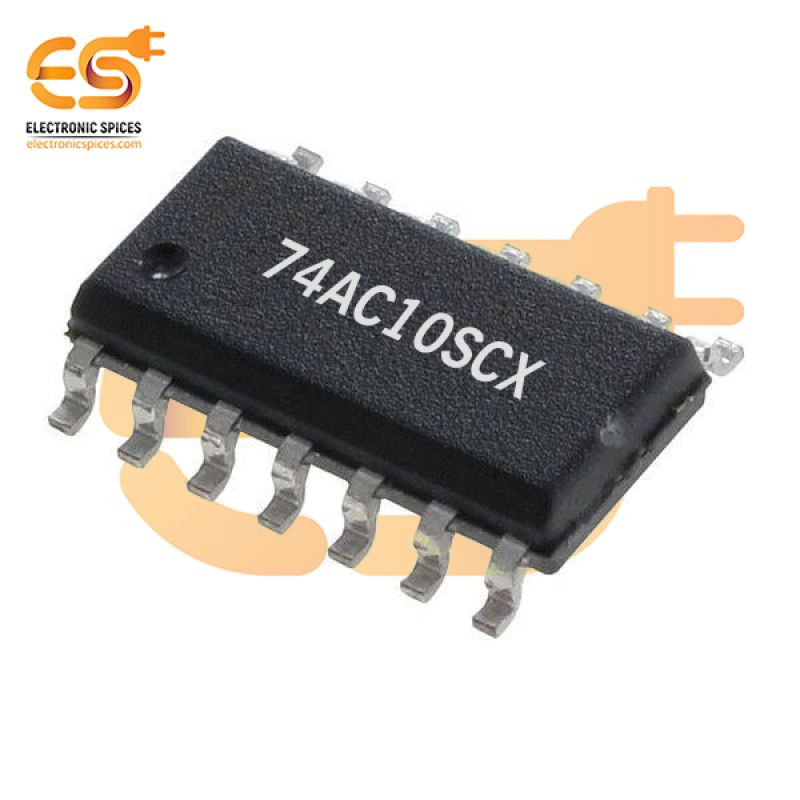

74AC10SCX Logic IC NAND Gate IC 3 Channel 14-SOIC

Specification :-

  • Package: SOIC14 (0.154", 3.90mm)
  • Logic Function: NAND
  • Low Level Output Current: 24 mA
  • High Level Output Current: - 24 mA
  • Propagation Delay Time: 9.5 ns
  • Supply Voltage - Min: 2 V
  • Supply Voltage - Max: 6 V

Available in Pack Of:

SKU: HH8517A

MRP Rs. 720.00
Rs. 500.00 (Incl. Tax)
Rs. 423.73 (+18% GST extra)
Rs. 423.73 / pack of 1 = Rs. 423.73 per piece
Buy to Get ₹0 off!
₹0 Special Discount Applied

74AC10SCX Logic IC NAND Gate IC 3 Channel 14-SOIC

The 74AC10SCX is a high-speed, triple-channel NAND gate IC designed for efficient logic operations in digital circuits. This IC features three independent two-input NAND gates, allowing it to perform complex logic functions with ease. Constructed using Advanced CMOS (AC) technology, the 74AC10SCX provides superior performance with fast switching speeds, low power consumption, and high noise immunity. This makes it an excellent choice for a wide range of applications, including computing, communication, and industrial control systems. The 74AC10SCX is housed in a 14-pin Small Outline Integrated Circuit (SOIC) package, which is ideal for surface-mount technology (SMT) applications. This package type provides a compact form factor, saving valuable PCB space and making it suitable for designs where space is a critical factor. The IC is compatible with both CMOS and TTL logic levels, ensuring easy integration into various digital systems. This NAND gate IC operates across a broad voltage range and is designed for high-speed performance, making it suitable for applications that require reliable, high-frequency signal processing. Its low power dissipation and strong noise margins also contribute to its reliability in noisy electronic environments. The 74AC10SCX is commonly used in systems that require high-speed logic operations, such as digital signal processing, timing circuits, and combinational logic functions.

Feature :-

  • High-Speed Operation
  • Low Power Dissipation
  • Reliable Performance
  • Robust Construction
