Specification:-
- Package/Case: SOIC14 (0.154", 3.90mm)
- Mounting Style: SMD/SMT
- Number of Gates: 4 Gate
- Low-Level Output Current: 24 mA
- High-Level Output Current: -24 mA
- Propagation Delay Time: 6.5 ns
- Supply Voltage - Min: 4.5 V
- Supply Voltage - Max: 5.5 V
SKU: SD8541A

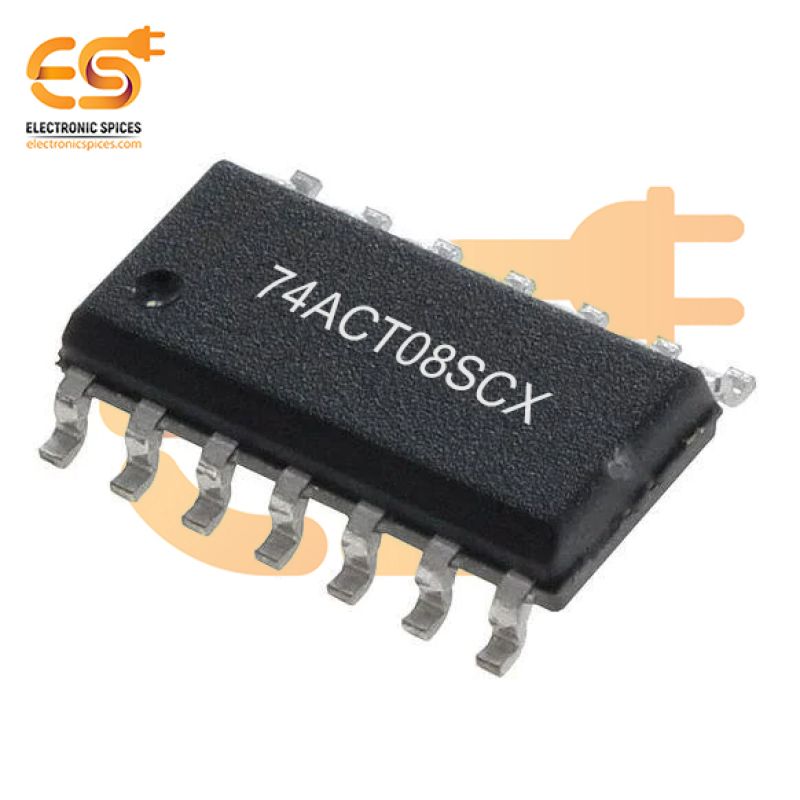

74ACT08SCX AND Gate Logic IC 4 Channel 14-SOIC
The 74ACT08SCX is a high-speed, low-power 4-channel AND gate logic IC, engineered to meet the demands of advanced digital applications. It features four independent AND gates, each performing a logical conjunction operation that outputs a high signal only when all respective inputs are high. This makes it indispensable in scenarios requiring precise logical computation. Encased in a 14-pin SOIC (Small Outline Integrated Circuit) package, the 74ACT08SCX is designed for surface-mount applications, enabling efficient use of PCB space in compact electronic designs. This IC operates on the advanced CMOS technology of the 74ACT series, supporting a wide operating voltage range of 4.5V to 5.5V. Its high-speed operation delivers low propagation delays, ensuring fast and reliable performance in high-frequency circuits. The device provides superior noise immunity and reduced power consumption compared to standard TTL logic, making it suitable for modern low-power applications. It is fully compatible with TTL input levels, ensuring seamless integration into mixed-logic systems.
Features:-
- 4-Input AND Gate
- Low Power Consumption
- High-Speed Operation
- Compact 14-SOIC Package
