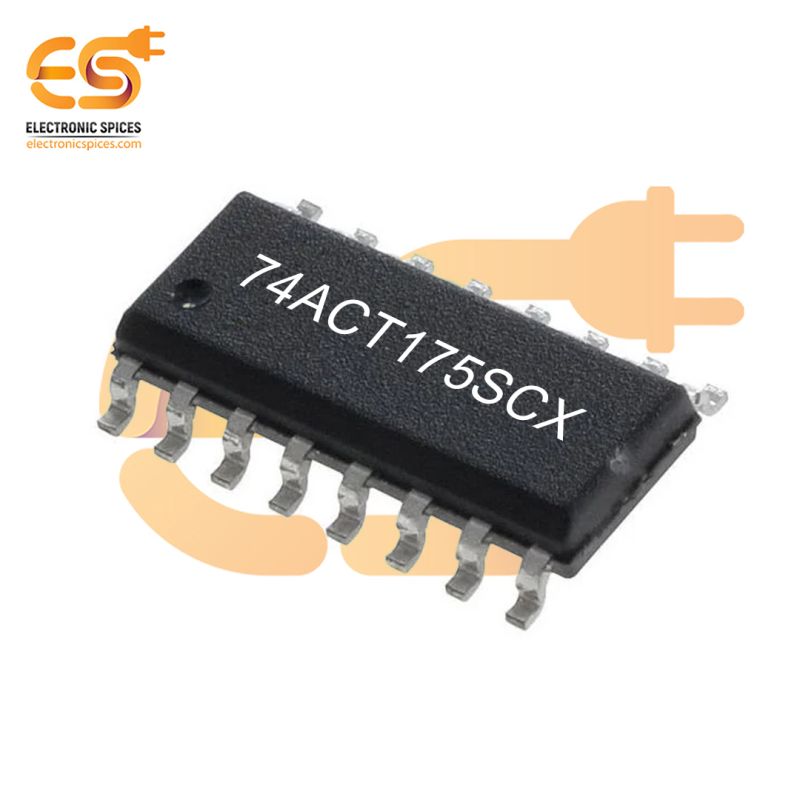

74ACT175SCX Flip Flop 1-Element D-Type Logic IC 4-Bit Positive Edge 16-PDIP

74ACT175SCX Flip Flop 1-Element D-Type Logic IC 4-Bit Positive Edge 16-PDIP

The 74ACT175SCX is a high-performance D-type flip-flop logic IC featuring a single 4-bit element and positive-edge triggering. This versatile IC is designed for high-speed digital applications, offering reliable data storage and transfer in synchronous systems. With four independent flip-flops, the device enables the efficient handling of parallel data inputs and outputs. Each flip-flop is equipped with a clock input, ensuring precise data latching on the rising edge of the clock signal. Complementary outputs (Q and Q̅) enhance design flexibility by allowing for inverted and non-inverted signal processing. The IC includes asynchronous preset (PRE) and clear (CLR) inputs, enabling immediate initialization or resetting of stored data without waiting for the clock pulse. These features make it well-suited for use in applications requiring fast data initialization or controlled state transitions. Designed to operate in a wide voltage range, the 74ACT175SCX is ideal for various logic levels and power supply configurations. It comes in a 16-PDIP package, ensuring compatibility with through-hole PCB designs and ease of integration in both prototyping and production environments.

Feature:-

• Positive-Edge Triggered
• 4-Bit D-Type Flip-Flop
• Low Power Consumption
• Robust Construction
• Suitable for use in data registers
