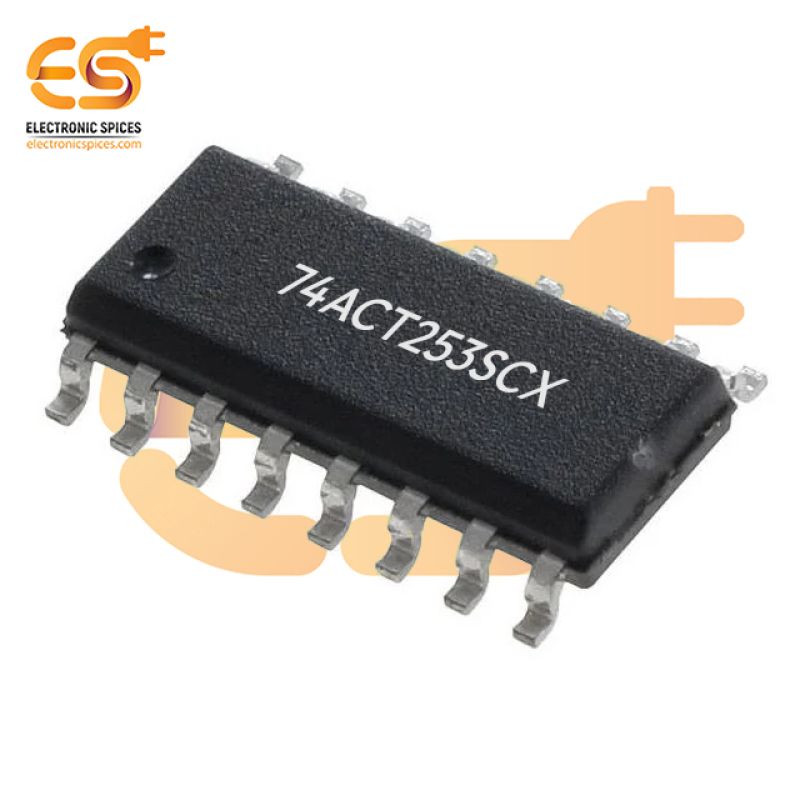

74ACT253SCX Logic IC Multiplexer 2 x 4:1 16-PDIP

74ACT253SCX Logic IC Multiplexer 2 x 4:1 16-PDIP

The 74ACT253SCX is a 2 x 4:1 multiplexer logic IC that allows the selection of one of four input channels for each of its two separate multiplexers. This device is designed to provide efficient signal routing in digital systems, making it ideal for applications such as data routing, signal processing, and communication systems. It operates with a 3-bit control input for each multiplexer, enabling users to choose the desired input for each channel independently. The IC features high-speed switching and low propagation delay, ensuring fast response times in time-sensitive applications. Built with Advanced CMOS Technology (ACT), the 74ACT253SCX offers low power consumption and is fully compatible with TTL logic levels, making it easy to integrate into TTL-based circuits. It operates within a broad supply voltage range, allowing flexibility across different system voltages. The 16-PDIP package provides an easy-to-handle and reliable form factor for mounting on PCBs or through-hole configurations. Additionally, it boasts high noise immunity, ensuring stable performance in environments with electrical interference. The 74ACT253SCX is well-suited for various digital designs, providing efficient, compact, and versatile multiplexer functionality for both industrial and consumer electronics applications.

Feature:-

• Fast Switching
• Reliable Performance
• Low Power Consumption
• Compact 16-PDIP Package
