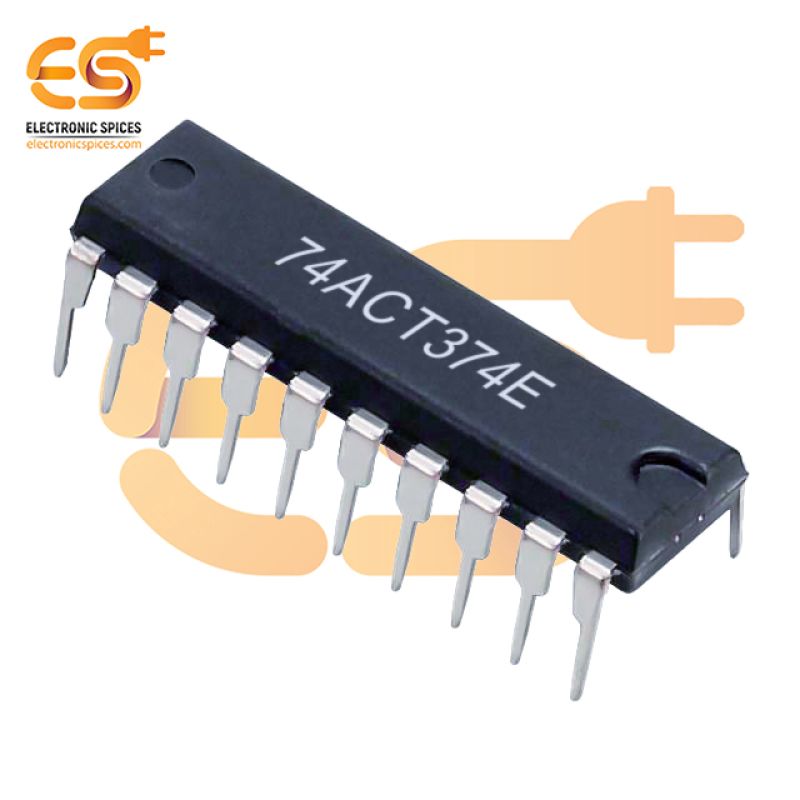

74ACT374E Flip Flop 1 Element D-Type Logic IC 8 Bit Positive Edge 20-PDIP

74ACT374E Flip Flop 1 Element D-Type Logic IC 8 Bit Positive Edge 20-PDIP

The 74ACT374E is an advanced high-speed 8-bit D-type flip-flop IC Designed for use in digital storage, data synchronization, and register applications. This IC features eight positive-edge-triggered flip-flops integrated into a single package, making it ideal for systems requiring high-speed data handling. Each flip-flop has individual D (data) inputs, clock inputs, and complementary Q outputs, allowing for precise control over data storage and retrieval. A common clock input synchronizes all eight flip-flops, while an active-low Output Enable (OE̅) pin allows the outputs to be tri-stated for easy interfacing with shared data buses. As part of the ACT (Advanced CMOS with TTL compatibility) family, the 74ACT374E combines high-speed operation with improved noise immunity and low power consumption. It operates within a voltage range of 4.5V to 5.5V, ensuring compatibility with TTL and CMOS logic systems. The IC is housed in a 20-pin PDIP (Plastic Dual In-line Package), suitable for through-hole mounting in PCB designs. With its fast switching speeds and reliable operation, the 74ACT374E is an excellent choice for digital registers, data latches, and memory buffering applications.

Features :-

• 8-bit, 1 element (8 flip-flops in one package)
• Positive edge-triggered operation
• 20-pin PDIP for through-hole mounting
• Fast switching suitable for high-frequency applications
