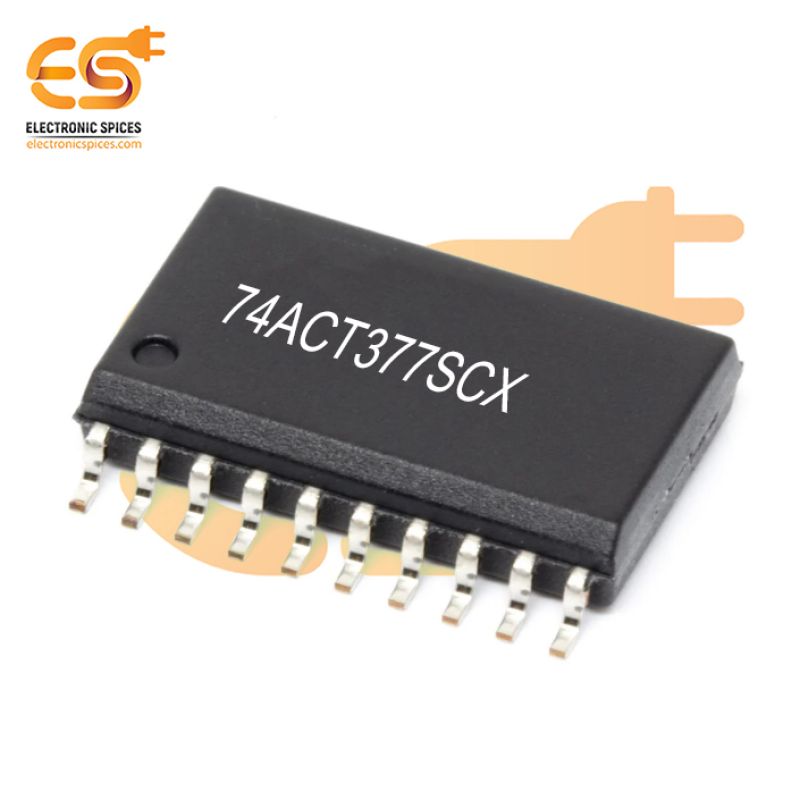

74ACT377SCX Flip Flop 1-Element D-Type Logic IC 8-Bit Positive Edge 20-PDIP
Specification:-
- Package: SOIC20 (0.295", 7.50mm)
- Logic Type: D-Type Flip-Flop
- Number of Circuits: 8 Circuit
- Input Type: Single-Ended
- Polarity: Non-Inverting
- High Level Output Current: - 24 mA
- Low Level Output Current: 24 mA
- Supply Voltage - Min: 4.5 V
- Supply Voltage - Max: 5.5 V
SKU: OZ8517A
74ACT377SCX Flip Flop 1-Element D-Type Logic IC 8-Bit Positive Edge 20-PDIP
The 74ACT377SCX is an 8-bit D-type flip-flop logic IC designed for use in digital circuits requiring data storage, transfer, and synchronization. This IC features eight D-type flip-flops, each capable of storing one bit of data. It operates on the positive edge of the clock signal, meaning it captures the input data on the rising edge of the clock and transfers it to the output accordingly. The 74ACT377SCX comes in a 20-pin PDIP package, making it suitable for through-hole applications where space efficiency and ease of integration are important. Each flip-flop has an associated output enable (OE) pin, which allows the output to be either enabled or placed in a high-impedance state. This is particularly useful for sharing data lines between multiple devices, ensuring that only one device drives the output at any given time. Designed using advanced ACT (Advanced CMOS Technology), this IC offers high-speed operation and low power consumption. It is ideal for applications in digital systems that require reliable data storage and transfer, such as memory buffers, registers, and shift registers, as well as in microprocessor-based circuits, digital signal processing, and timing applications. The 74ACT377SCX provides precise data synchronization with fast propagation delays, ensuring accurate performance in high-speed digital circuits.
Feature:-
- Positive-Edge Triggered
- 8-Bit D-Type Flip-Flop
- Low Power Consumption
- Robust Construction
- Suitable for use in data registers
