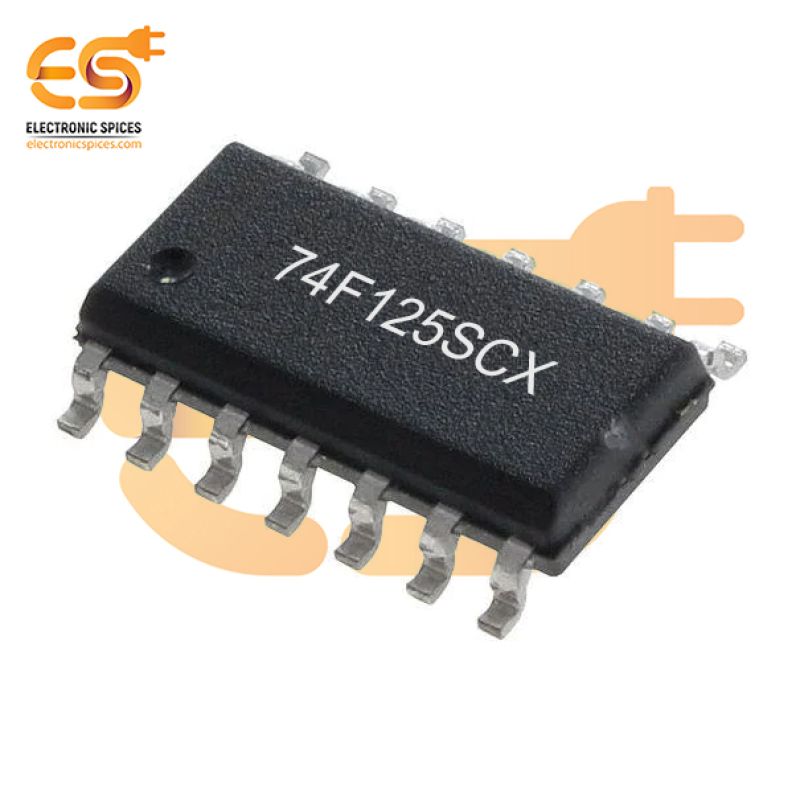

74F125SCX Buffer Non-Inverting Logic IC 4-Element 1 Bit per Element 3-State Output 14-SOIC

74F125SCX Buffer Non-Inverting Logic IC 4-Element 1 Bit per Element 3-State Output 14-SOIC

The 74F125SCX is a buffer non-inverting logic IC that features four 1-bit buffer elements, each with 3-state outputs. It comes in a 14-pin SOIC (Small Outline Integrated Circuit) package, designed for use in a variety of digital applications where signal buffering is necessary to ensure reliable signal transmission and prevent interference. The non-inverting buffer provides a direct, unaltered output of the input signal, which means the output signal maintains the same logic state as the input. Each of the four elements operates independently, meaning the IC can buffer up to four signals simultaneously. The 3-state output feature allows the device to either drive a signal, remain in a high-impedance state, or hold its output low. This makes it highly versatile in situations where multiple devices share a bus or signal line, as it can effectively prevent data collisions by placing unused output lines in a high-impedance state. The 74F125SCX is ideal for use in bus-oriented systems, where multiple signals need to be transmitted without interference, such as in memory buffers, microprocessor interfaces, and data bus drivers. Its low power consumption and high-speed operation make it suitable for applications in digital electronics, including communication systems, computers, and consumer electronics.

Features:-

• Wide Voltage Range
• High-Speed Operation
• Low Power Consumption
• Standard 14-SOIC Package
