74F132SCX NAND Gate Logic IC 4 Channel Schmitt Trigger 14-SOIC

74F132SCX NAND Gate Logic IC 4 Channel Schmitt Trigger 14-SOIC

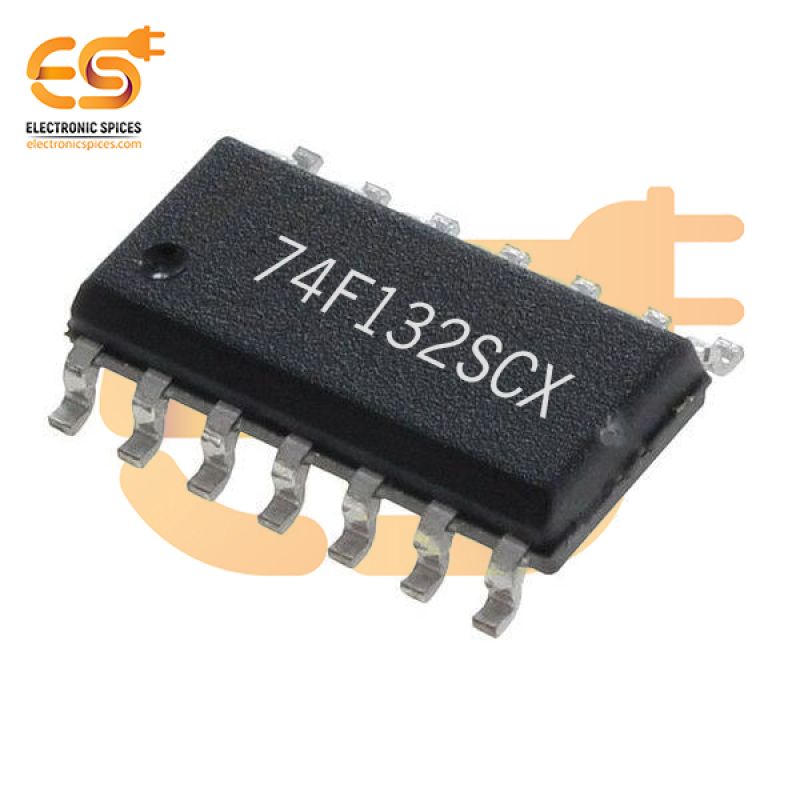

The 74F132SCX is a quad 2-input NAND gate IC featuring Schmitt Trigger inputs, packaged in a 14-pin Small Outline Integrated Circuit (SOIC) package. It is part of the 74F series, known for its high-speed performance and compatibility with TTL (Transistor-Transistor Logic) systems. This IC includes four independent 2-input NAND gates, each with Schmitt Trigger inputs. The Schmitt Trigger design is crucial for noise immunity and ensures reliable operation in the presence of slow or noisy input signals. This feature provides hysteresis, allowing the gate to handle slow transitions without error, making it ideal for applications where signal integrity is critical. The 74F132SCX is designed to operate with a supply voltage of 4.5V to 5.5V, and it is capable of driving TTL-compatible loads. The Schmitt Trigger inputs ensure that the gate responds sharply to both high and low logic levels, avoiding false triggering and making the IC suitable for high-speed applications. The IC also delivers low power consumption, contributing to the overall efficiency of the circuit in which it is used.

Feature:-

• High-Speed Operation
• Low Power Dissipation
• Reliable Performance
• Robust Construction
