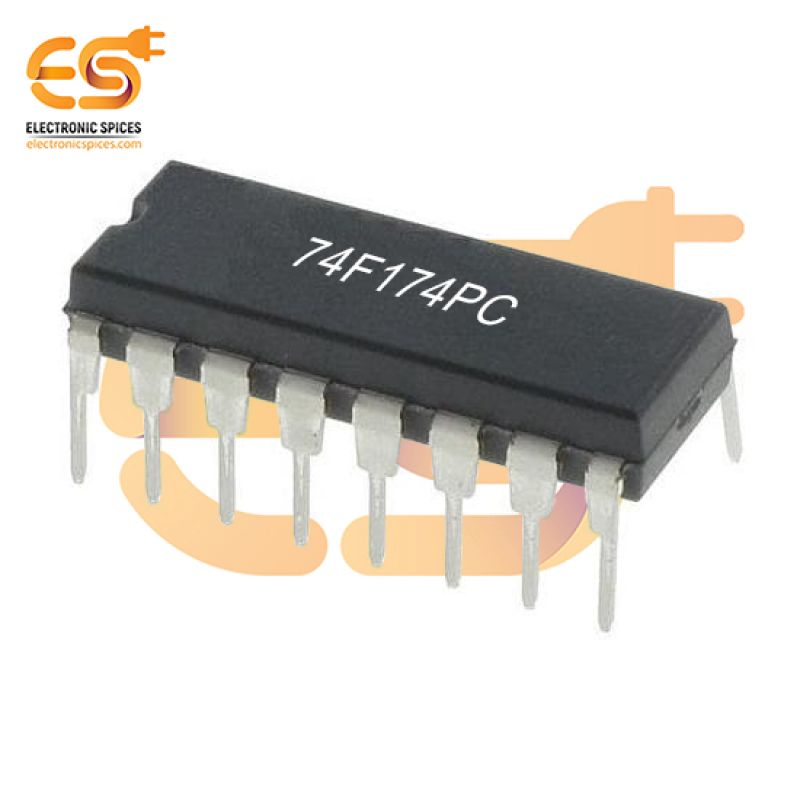

74F174PC Flip Flop 1-Element D-Type Logic IC 6-Bit Positive Edge 16-PDIP

74F174PC Flip Flop 1-Element D-Type Logic IC 6-Bit Positive Edge 16-PDIP

The 74F174PC is a 6-bit D-type flip-flop logic IC designed for high-speed digital logic applications. It incorporates six independent D-type flip-flops, each capable of storing one bit of data. The IC features positive-edge triggering, allowing it to latch input data on the rising edge of the clock signal, ensuring reliable and synchronized data handling in high-performance circuits. Each flip-flop provides complementary outputs (Q and Q̅), offering both inverted and non-inverted output signals for added versatility in circuit design. An asynchronous clear (CLR) input is included, enabling all flip-flops to be reset to a low state immediately, regardless of the clock signal. This feature ensures the IC can be quickly initialized or reset during system startup or fault recovery scenarios. The 74F174PC is known for its robust performance, offering low propagation delay and high switching speeds to meet the demands of modern digital systems. Housed in a 16-pin PDIP package, it is suitable for through-hole mounting, making it ideal for applications that require ease of assembly and reliable mechanical stability. Typical uses include data registers, counters, and buffer memory in computing and communication systems. The 74F174PC is an excellent choice for designs requiring fast, reliable, and efficient data storage and transfer.

Feature :-

• Positive-Edge Triggered
• 6-Bit D-Type Flip-Flop
• Low Power Consumption
• Robust Construction
• Suitable for use in data registers
