Specification:-
- Package: TSSOP-48 (0.240", 6.10mm)
- No. of pins: 48 pin
- Output Type: 3-State
- Supply Voltage Min: 3 V
- Supply Voltage Max: 3.6 V
- Mounting Type: Surface Mount
- Logic Type: Transceiver, Non-Inverting
- Number of Bits per Element: 8
- Operating Temperature: -40°C to 85°C
SKU: GM8542E1

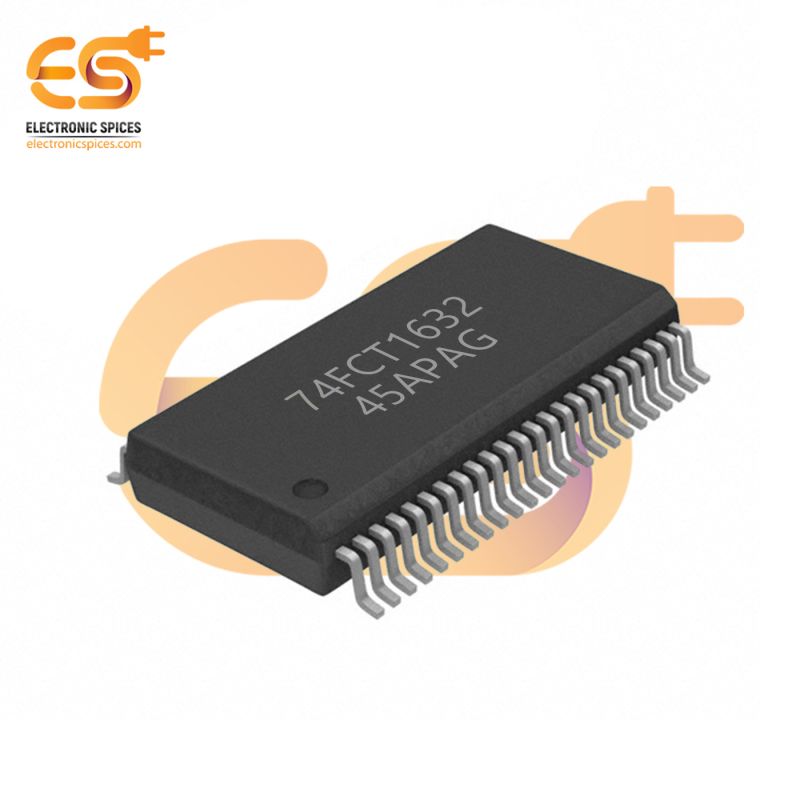

74FCT163245APAG 8-Bit Non-Inverting Transceiver IC 48-TSSOP
The 74FCT163245APAG is a high-performance CMOS transceiver designed for efficient data exchange between buses in complex digital systems. This device features two 8-bit elements, providing robust bi-directional data flow with non-inverting outputs, making it ideal for applications such as memory interfacing, data communication, and bus driving. The transceiver's three-state outputs allow for shared communication lines, enabling multiple outputs to connect to a single bus without causing interference. Housed in a compact 48-TSSOP (Thin Shrink Small Outline Package), the 74FCT163245APAG is well-suited for high-density circuit designs, offering significant space savings on printed circuit boards (PCBs). It supports a wide range of operating voltages, making it compatible with both 3.3V and 5V systems, which is essential for interfacing between different logic levels. The device is built with advanced CMOS technology, ensuring fast switching speeds and low power consumption, which enhances overall system performance.
Features:-
- Non-Inverting Transceive
- Wide Operating Voltage Range
- 2 Elements with 8 Bits per Element
- Ensures fast switching speeds and low power consumption
