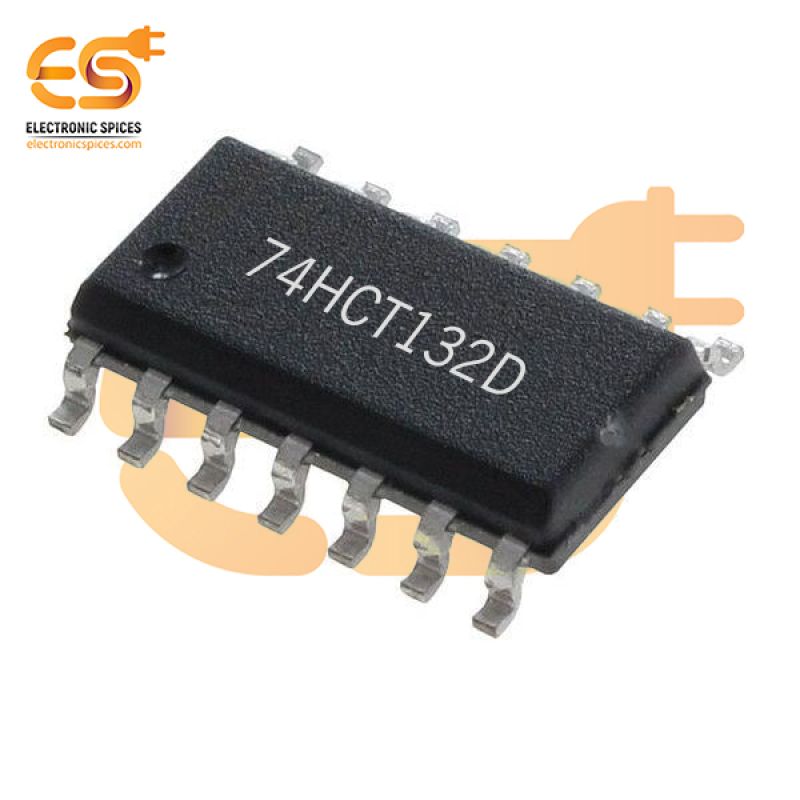

74HCT132D NAND Gate IC 4 Channel Schmitt Trigger Logic IC 14-SOIC

74HCT132D NAND Gate IC 4 Channel Schmitt Trigger Logic IC 14-SOIC

The 74HCT132D is a quad 2-input NAND gate IC with Schmitt trigger inputs, making it highly effective for noise immunity and ensuring reliable operation in noisy environments. The Schmitt trigger inputs are designed to convert slow or noisy input signals into clean, fast digital transitions, making this IC ideal for signal conditioning and ensuring clean logic transitions in high-speed digital circuits. The IC has four independent NAND gates  NAND Gate IC, and each gate performs the NAND Gate IC operation on two inputs, producing a high output unless both inputs are high. As part of the HCT (High-Speed CMOS with TTL compatibility) family, the 74HCT132D offers the benefits of CMOS technology, such as low power consumption and high-speed performance, while maintaining compatibility with TTL logic levels. This IC operates within a supply voltage range of 4.5V to 5.5V and is housed in a 14-pin SOIC (Small Outline Integrated Circuit) package, which is well-suited for surface-mount technology in compact designs. The 74HCT132D is widely used in applications that require reliable logic operations in environments with noisy signals, as well as where space and low power consumption are critical considerations.

Features :-

• Quad 2-input NAND gate with Schmitt trigger inputs
• 4 independent 2-input NAND gates
• Suitable for energy-efficient designs
• 14-pin SOIC for surface-mount technology
