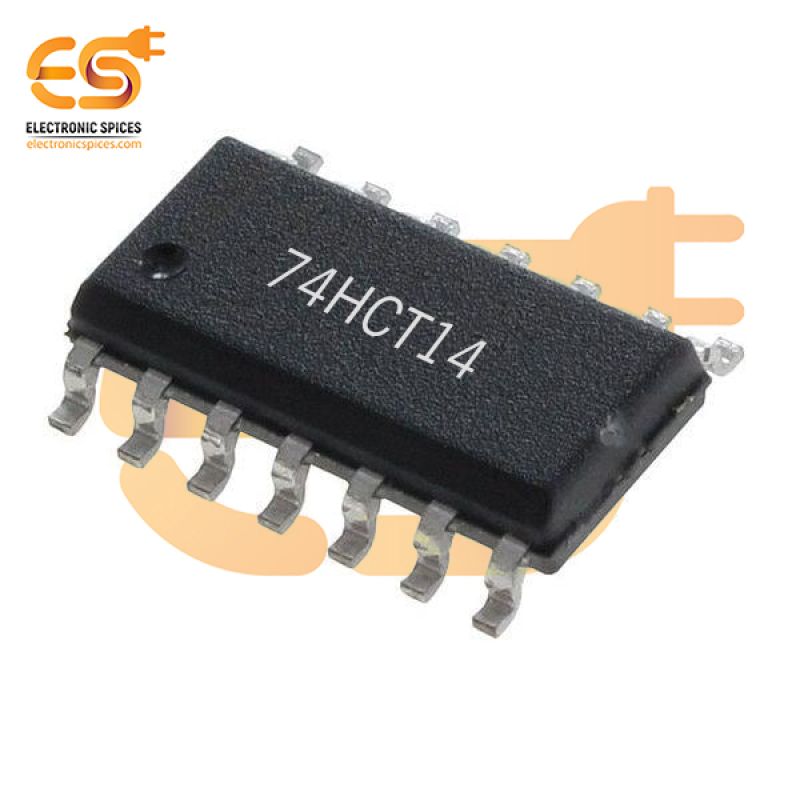

74HCT14 Inverter IC 6 Channel Schmitt Trigger 14-SOIC

74HCT14 Inverter IC 6 Channel Schmitt Trigger 14-SOIC

The 74HCT14 is a high-speed CMOS inverter IC featuring six independent Schmitt-trigger inputs in a single package. Each channel inverts the logic state of its input while incorporating a Schmitt trigger to ensure noise immunity and fast signal transitions. The Schmitt trigger inputs provide hysteresis, making the IC highly effective in applications requiring clean, noise-free signal processing, such as waveform shaping, pulse conditioning, and signal debouncing. As part of the HCT (High-Speed CMOS with TTL compatibility) family, the 74HCT14 operates at TTL-compatible input voltage levels while offering the low power consumption and high noise immunity typical of CMOS technology. This IC operates across a wide voltage range of 4.5V to 5.5V and is housed in a 14-pin SOIC (Small Outline Integrated Circuit), making it ideal for compact, surface-mount PCB designs.

Features :-

• 6 independent inverting channels
• TTL-compatible input voltage levels
• 14-pin SOIC for surface-mount technology
• Noise immunity and fast transitions due to Schmitt trigger hysteresis
