LOGIC IC

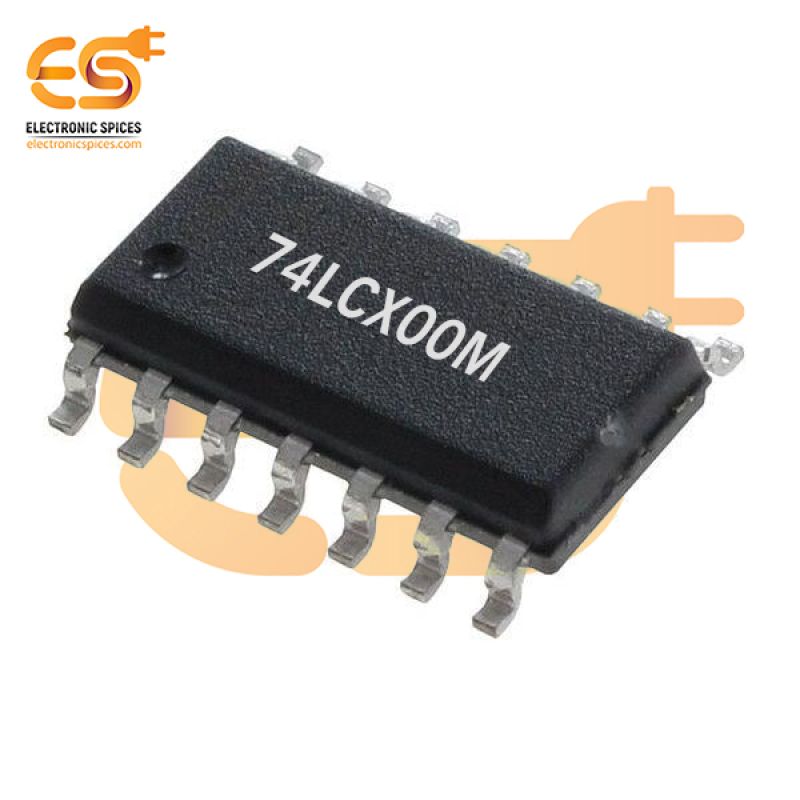

74LCX00M Logic IC NAND Gate IC 4 Channel 14-SOIC

Specification:-

  • Package: SOIC14 (0.154", 3.90mm)
  • Logic Function: NAND
  • Number of Output Lines: 4 Output
  • Low Level Output Current: 24 mA
  • High Level Output Current: - 24 mA
  • Propagation Delay Time: 5.5 ns
  • Supply Voltage - Min: 2 V
  • Supply Voltage - Max: 6 V
Available in Pack Of:

SKU: MR8517A

MRP Rs. 660.00
Rs. 500.00 (Incl. Tax)
Rs. 423.73 (+18% GST extra)
Rs. 423.73 / pack of 1 = Rs. 423.73 per piece
Buy to Get ₹0 off!
₹0 Special Discount Applied

74LCX00M Logic IC NAND Gate IC 4 Channel 14-SOIC

The 74LCX00M is a quad 2-input NAND gate logic IC, designed to provide efficient logic operations with low power consumption and high-speed performance. This IC consists of four independent NAND gates, each with two inputs, and is suitable for a wide range of digital logic applications. It is built using the LCX technology, which ensures high-speed performance, low-voltage operation, and low power dissipation. The IC operates at a wide voltage range, making it versatile and compatible with both CMOS and TTL logic levels. The 74LCX00M is packaged in a 14-pin Small Outline Integrated Circuit (SOIC) form factor, ideal for surface-mount assembly in modern compact designs. The SOIC package helps minimize the physical footprint of the IC, which is essential for space-constrained applications. Its high noise immunity ensures stable and reliable operation in noisy environments, contributing to robust performance in various systems. The 74LCX00M is used in a variety of applications, including digital signal processing, data communication, logic control, and interfacing circuits. With its fast propagation delay and low power consumption, this IC is ideal for use in systems that require high-speed logic gates for complex tasks like timing, multiplexing, and data manipulation. Its reliability and flexibility make it a key component in modern electronic systems.

Feature:-

  • High-Speed Operation
  • Low Power Dissipation
  • Reliable Performance
  • Robust Construction
