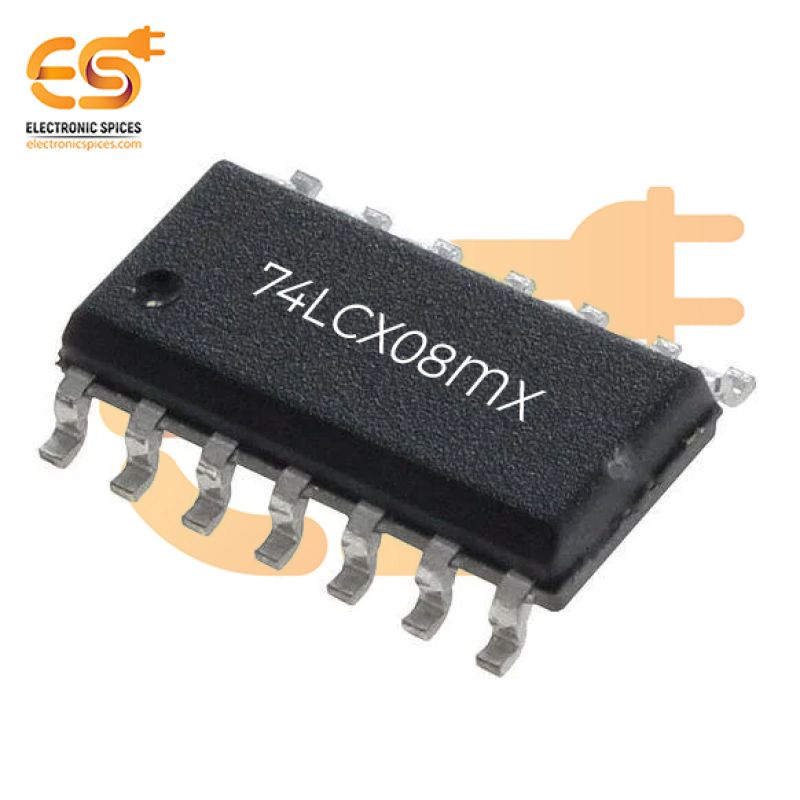

74LCX08MX AND Gate Logic IC 4 Channel 14-SOIC

74LCX08MX AND Gate Logic IC 4 Channel 14-SOIC

The 74LCX08MX is a low-voltage, high-performance 4-channel AND gate logic IC designed to meet the demands of modern digital systems. Each of its four independent AND gates performs a logical conjunction operation, outputting a high signal only when all respective inputs are high, making it integral for applications requiring precise logical decision-making. Encased in a 14-pin SOIC (Small Outline Integrated Circuit) package, the 74LCX08MX is optimized for surface-mount technology, ensuring compact and efficient use of PCB space. Its low-voltage CMOS technology allows operation in the range of 2.0V to 3.6V, making it suitable for low-power applications while maintaining compatibility with 5V tolerant inputs. This feature ensures seamless integration into mixed-voltage systems. The IC provides high-speed operation with low propagation delay, making it ideal for high-frequency switching applications. It exhibits excellent noise immunity, ensuring reliable performance in electrically noisy environments. Its low static power dissipation contributes to energy efficiency, making it suitable for portable and battery-operated devices.

Features:-

• 4-Input AND Gate
• Low Power Consumption
• High-Speed Operation
• Compact 14-SOIC Package
