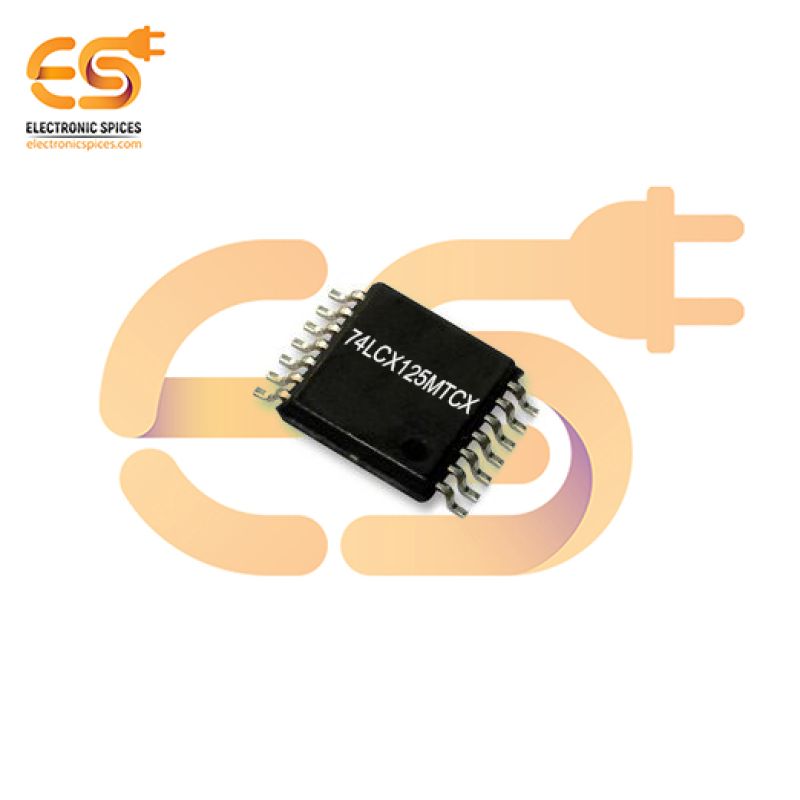

74LCX125MTCX Buffer Non-Inverting Logic IC 4-Element 1 Bit per Element 3-State Output 14-TSSOP
Specification:-
- Package/Case: TSSOP14 (0.173", 4.40mm)
- Mounting Style: SMD/SMT
- Polarity: Non-Inverting
- High Level Output Current: - 24 mA
- Low Level Output Current: 24 mA
- Quiescent Current: 10 uA
- Supply Voltage - Min: 2 V
- Supply Voltage - Max: 3.6 V
- Operating Supply Current: 10 uA
SKU: RI8541A
74LCX125MTCX Buffer Non-Inverting Logic IC 4-Element 1 Bit per Element 3-State Output 14-TSSOP
The 74LCX125MTCX is a non-inverting buffer logic IC featuring 4 elements, each supporting 1 bit. Designed for 3-state output control, this IC is well-suited for use in systems requiring signal buffering, isolation, or bus management. Its tri-state capability ensures efficient signal multiplexing and prevents contention on shared buses. Belonging to the 74LCX (Low Voltage CMOS) family, the IC operates within a wide voltage range of 2.0V to 3.6V, making it ideal for low-power applications. It also ensures TTL-compatible input thresholds for seamless integration into mixed-voltage systems. The low power consumption and high noise immunity further enhance its usability in various digital designs. The device is packaged in a compact 14-pin TSSOP (Thin Shrink Small Outline Package), making it highly suitable for space-constrained designs while maintaining reliable performance. The non-inverting configuration ensures that the output signals are identical to the input, preserving signal integrity.
Features:-
- Wide Voltage Range
- High-Speed Operation
- Low Power Consumption
- Standard 14-TSSOP Package
