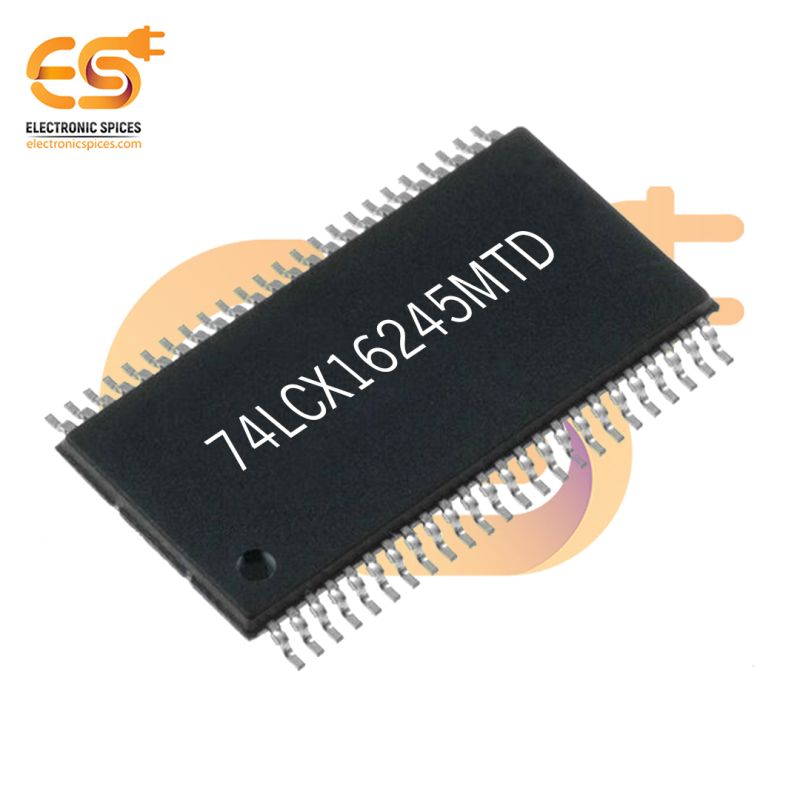

74LCX16245MTD Transceiver, Non-Inverting Logic IC 2-Element 8 Bit per Element 3-State Output 48-TSSOP

74LCX16245MTD Transceiver, Non-Inverting  Logic IC 2-Element 8 Bit per Element 3-State Output 48-TSSOP

The 74LCX16245MTD is a high-performance, low-voltage 16-bit transceiver designed for bi-directional data transfer between buses. It consists of two 8-bit elements and is packaged in a 48-TSSOP form factor, ideal for high-density PCB layouts. Each element is equipped with independent direction control (DIR) and output enable (OE) inputs, enabling seamless management of data flow and bus isolation. Engineered with advanced CMOS technology, the 74LCX16245MTD operates at supply voltages as low as 2.0V and up to 3.6V, making it suitable for low-power applications. It offers compatibility with TTL-level inputs, ensuring easy integration into mixed-logic designs. The device features 3-state outputs, which are crucial for bus-sharing systems, allowing multiple devices to interface without conflicts. The transceiver supports high-speed data communication with minimal propagation delay, making it suitable for demanding applications like memory interfacing, microprocessor communication, and general-purpose buffering. Its robust design ensures excellent noise immunity and stable operation in noisy environments, while its RoHS-compliant construction aligns with modern environmental standards.

Feature:-

• 16-Bit Transceiver
• 3-State Outputs
• Low Voltage Operation
• Independent Control Inputs
• High-Speed Performance
• Compact 48-TSSOP Package
