LOGIC IC

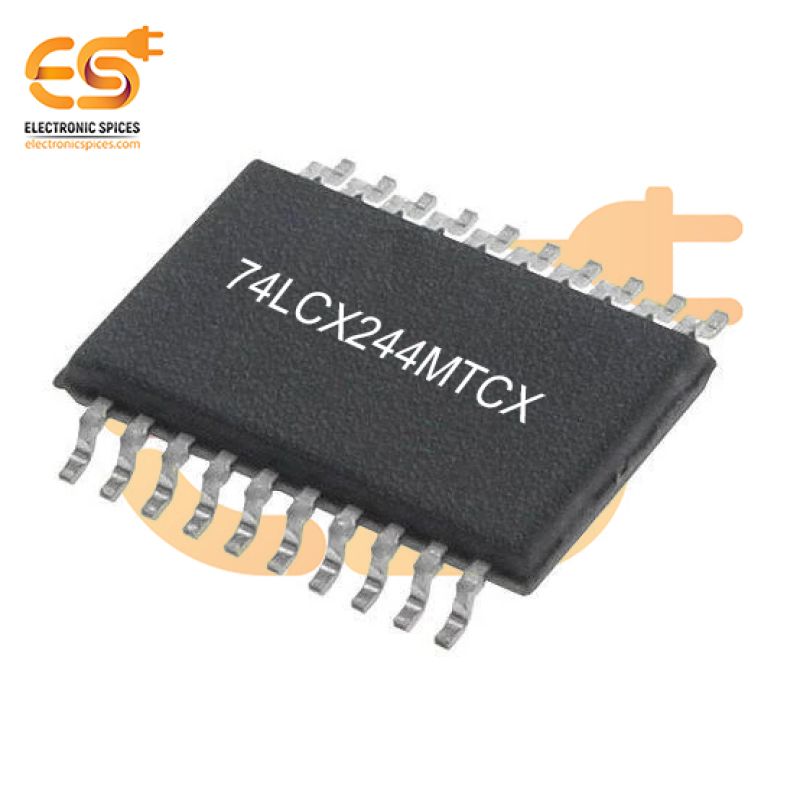

74LCX244MTCX Buffer Non-Inverting Logic IC 2-Element 4 Bit per Element 3-State Output 20-TSSOP

Specification:-

  • Package/Case: TSSOP20 (0.173", 4.40mm)
  • Mounting Style: SMD/SMT
  • Polarity: Non-Inverting
  • High Level Output Current: -24 mA
  • Low Level Output Current: 24 mA
  • Quiescent Current: 10 uA
  • Supply Voltage - Min: 2 V
  • Supply Voltage - Max: 3.6 V
  • Operating Supply Current: 10 uA
Available in Pack Of:

SKU: UY8541A

MRP Rs. 610.00
Rs. 500.00 (Incl. Tax)
Rs. 423.73 (+18% GST extra)
Rs. 423.73 / pack of 1 = Rs. 423.73 per piece
Buy to Get ₹0 off!
₹0 Special Discount Applied

74LCX244MTCX Buffer Non-Inverting Logic IC 2-Element 4 Bit per Element 3-State Output 20-TSSOP

The 74LCX244MTCX is a non-inverting buffer logic IC designed to handle 2 elements, each supporting 4 bits, for a total of 8 buffered bits. Featuring 3-state outputs, it allows for flexible data flow management in systems with shared bus architectures, reducing the risk of data collisions. Part of the LCX (Low-Voltage CMOS) logic family, this IC is optimized for high-speed operation at low power consumption. It supports a broad operating voltage range, typically from 2.0V to 3.6V, making it ideal for low-power applications and systems that interface with 3.3V logic. The 74LCX244MTCX is also equipped with inputs that are 5V-tolerant, allowing compatibility with higher voltage systems. This surface-mount IC is designed for space-constrained applications and is housed in a compact 20-pin TSSOP (Thin Shrink Small Outline Package). Its non-inverting configuration ensures that input signals are accurately replicated at the output, maintaining data integrity.

Features:-

  • Wide Voltage Range
  • High-Speed Operation
  • Low Power Consumption
  • Standard 20-TSSOP Package
