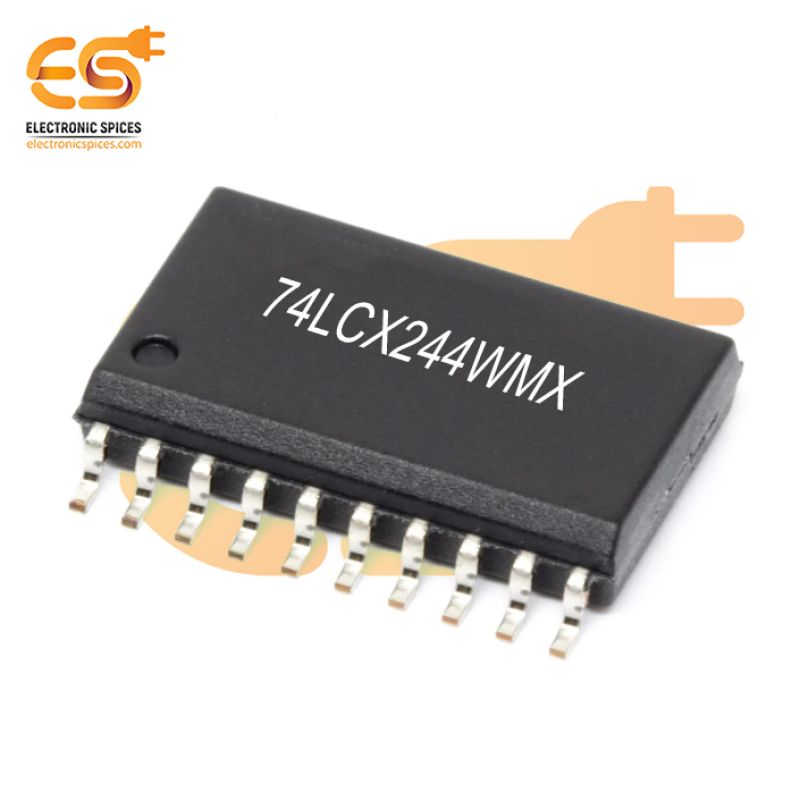

74LCX244WMX Buffer Non-Inverting Logic IC 2-Element 4 Bit per Element 3-State Output 20-SOIC

74LCX244WMX Buffer Non-Inverting Logic IC 2-Element 4 Bit per Element 3-State Output 20-SOIC

The 74LCX244WMX is a non-inverting buffer logic IC designed with 2 elements, each capable of handling 4 bits of data, offering a total of 8 bits of data capacity. This IC is equipped with 3-state outputs, which provide the flexibility to either drive a signal or be placed in a high-impedance state, making it ideal for use in bus-oriented systems where multiple devices may be connected to the same data lines. Operating with low power consumption and high-speed performance, the 74LCX244WMX utilizes LCX (Low-Cost CMOS) technology, ensuring that it performs efficiently even at high frequencies while maintaining compatibility with TTL logic levels. This makes it suitable for both modern high-speed applications and systems requiring power-sensitive operations. Housed in a 20-pin SOIC (Small Outline Integrated Circuit) package, the 74LCX244WMX offers a compact design, which is essential for space-constrained circuit designs, particularly in surface-mount technology (SMT) applications. Its non-inverting functionality ensures that the input signal is passed through to the output without any inversion, preserving the signal integrity

Features:-

• Wide Voltage Range
• High-Speed Operation
• Low Power Consumption
• Standard 20-SOIC Package
