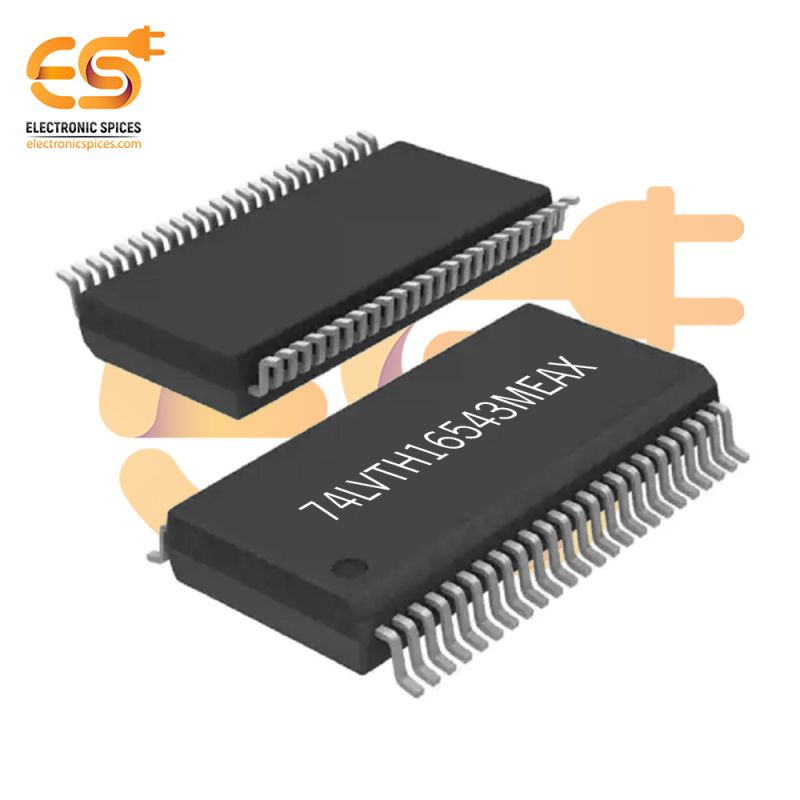

74LVTH16543MEAX Transceiver, Non-Inverting Logic IC 2-Element 8 Bit per Element 3-State Output 56-SSOP

74LVTH16543MEAX Transceiver, Non-Inverting  Logic IC 2-Element 8 Bit per Element 3-State Output 56-SSOP

The 74LVTH16543MEAX is a high-performance 16-bit transceiver designed for bidirectional data communication between buses. Featuring two independent 8-bit sections, this device is tailored for efficient data handling in high-speed digital systems. Packaged in a compact 56-SSOP form factor, it is ideal for applications requiring high-density circuit designs. The transceiver incorporates non-inverting logic and supports 3-state outputs, enabling multiple devices to share a common bus without signal interference. With low-voltage operation and support for TTL-level inputs, it provides seamless integration into mixed-voltage systems. Advanced features like bus-hold circuitry eliminate the need for external pull-up resistors, improving circuit simplicity and reliability. Engineered with low-voltage CMOS technology, the device offers superior noise immunity and low power consumption while maintaining high-speed operation. The direction (DIR) and output enable (OE) control inputs for each element ensure precise data flow control and bus isolation. It is particularly suited for use in memory interfacing, microprocessor communication, and other digital systems requiring reliable data transfer. The 74LVTH16543MEAX is compliant with modern environmental standards, including RoHS, making it a dependable and eco-friendly choice for designers.

Feature:-

• 3-State Outputs
• Low-Voltage Operation
• High-Speed Performance
• Compact 56-SSOP Package
• Wide Application Range
• Comprises two 8-bit sections for efficient data transfer
