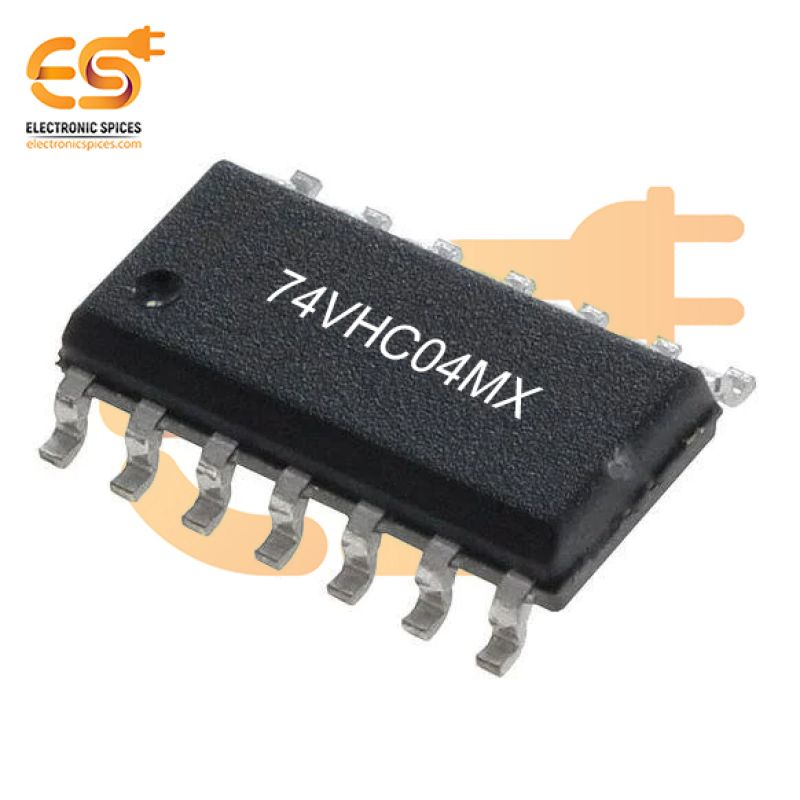

74VHC04MX Inverter Logic IC 6-Channel 14-SOIC

74VHC04MX Inverter Logic IC 6-Channel 14-SOIC

The 74VHC04MX is a high-speed hex inverter logic IC that features six independent inverting gates within a single 14-pin SOIC (Small Outline Integrated Circuit) package. This IC is part of the VHC (Very High-Speed CMOS) family, providing superior performance with very low power consumption, making it ideal for a variety of digital logic applications requiring fast response times. Designed to operate across a voltage range of 2V to 5.5V, the 74VHC04MX is highly versatile, supporting both 3.3V and 5V logic systems. It offers fast switching speeds, with propagation delays typically in the range of nanoseconds, making it suitable for high-speed signal processing. Each inverter gate performs reliable signal inversion with consistent output, ensuring the IC maintains precision in its logic functions. This device boasts high noise immunity and low static power dissipation, further enhancing energy efficiency and performance in demanding environments. With a high input impedance, the 74VHC04MX is compatible with a wide range of logic families and provides reliable signal inversion for applications such as logic circuits, waveform generation, signal buffering, and clock inversion.

Feature:-

• 6-Channel Inverter
• Low Power Consumption
• Low Propagation Delay
• Wide Operating Voltage Range
• Ultra High-Speed CMOS Technology
