LOGIC IC

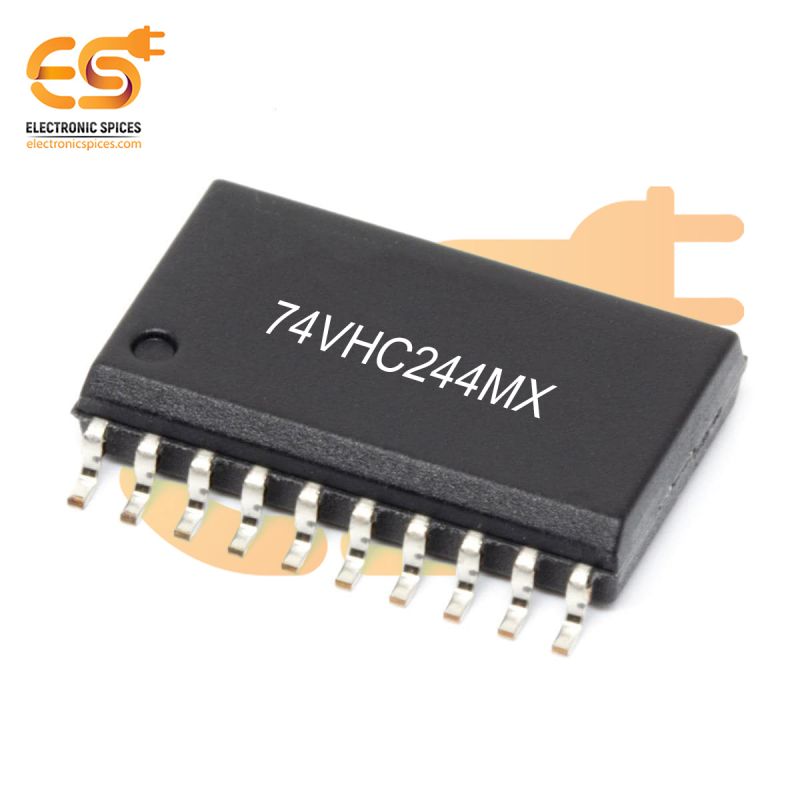

74VHC244MX Buffer Non-Inverting Logic IC 2-Element 4 Bit per Element 3-State Output 20-SOIC

Specification:-

  • Package/Case: SOIC20 (0.295", 7.50mm)
  • Mounting Style: SMD/SMT
  • Polarity: Non-Inverting
  • High Level Output Current: - 8 mA
  • Low Level Output Current: 8 mA
  • Quiescent Current: 4 uA
  • Supply Voltage - Min: 2 V
  • Supply Voltage - Max: 5.5 V

Available in Pack Of:

SKU: YH8541A

MRP Rs. 690.00
Rs. 500.00 (Incl. Tax)
Rs. 423.73 (+18% GST extra)
Rs. 423.73 / pack of 1 = Rs. 423.73 per piece
Buy to Get ₹0 off!
₹0 Special Discount Applied

74VHC244MX Buffer Non-Inverting Logic IC 2-Element 4 Bit per Element 3-State Output 20-SOIC

The 74VHC244MX is a non-inverting buffer logic IC designed with 2 elements, each capable of handling 4 bits of data, providing a total of 8 bits of buffering capacity. This IC features 3-state outputs, allowing it to drive signals on a shared bus or be placed in a high-impedance state to prevent interference, making it highly suitable for bus-oriented systems. Engineered with VHC (Very High-Speed CMOS) technology, the 74VHC244MX delivers excellent speed performance while maintaining low power dissipation, ensuring efficient operation in high-frequency digital applications. It is also fully compatible with TTL input levels, allowing seamless integration with a wide range of digital systems. Encased in a 20-pin SOIC (Small Outline Integrated Circuit) package, this IC is ideal for surface-mount technology (SMT) designs, enabling compact and space-efficient circuit layouts. Its non-inverting configuration ensures that the input signal is passed through directly to the output without any alteration, preserving signal fidelity.

Features:-

  • Wide Voltage Range
  • High-Speed Operation
  • Low Power Consumption
  • Standard 20-SOIC Package
