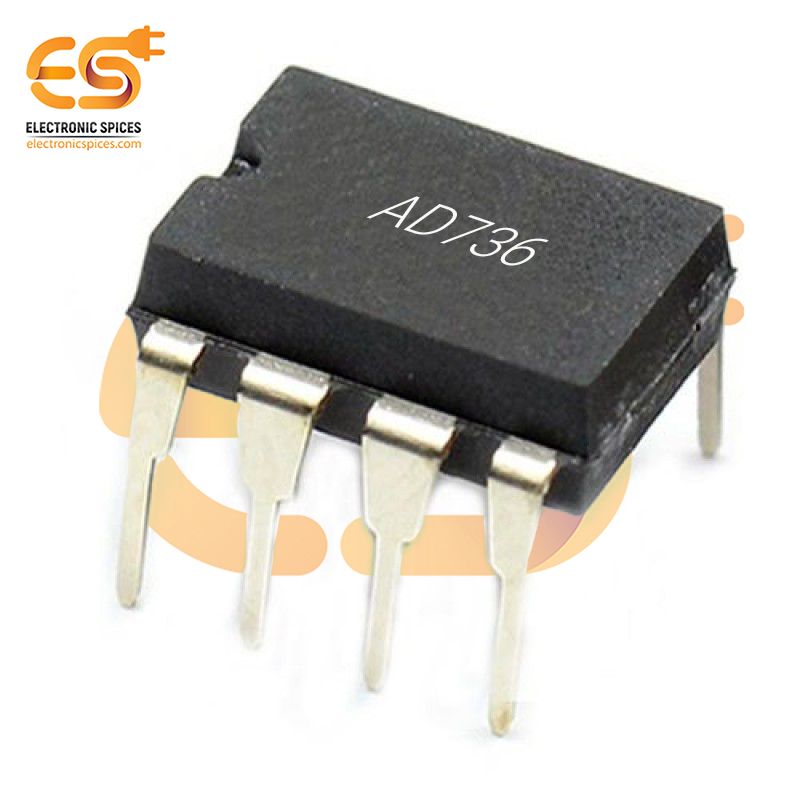

AD736 True RMS to DC Converter IC
Specification:-
- Supply Voltage: ±16.5 V
- Internal Power Dissipation: 200 mW
- Input Voltage: ±VS
- Output Short-Circuit Duration: Indefinite
- Differential Input Voltage: +VS and –VS
- Lead Temperature: 300°C
- Storage Temperature Range: −65°C to +125°C
- Wide power supply range: +2.8 V, −3.2 V to ±16.5 V
SKU: TR8501A
AD736 True RMS to DC Converter IC
The AD736 is a True RMS-to-DC Converter IC, designed to convert an AC signal's root mean square (RMS) value into a proportional DC voltage. This IC is ideal for applications requiring the measurement and processing of varying AC signals, particularly where non-sinusoidal waveforms or complex signal forms are present. It is commonly used in power measurement, audio processing, and signal conditioning systems. The AD736 is noted for its high accuracy and linear response, ensuring that it delivers an accurate RMS value even for signals with varying amplitudes and frequencies. The IC works effectively with both sinusoidal and non-sinusoidal input signals, offering excellent dynamic range and precision in signal conversion. The IC's low offset voltage and low drift ensure that it maintains performance over a broad range of temperatures and conditions. This RMS-to-DC converter is designed to operate over a wide range of input voltage levels, from low millivolt signals to several volts peak, making it highly versatile for a variety of applications. The AD736 provides a low power consumption solution, which makes it suitable for battery-powered and portable devices.
Features:-
- High-Speed Operation
- Wide Operating Voltage Range
- Low Power Consumption
- Buffered voltage output
- Computes True rms value, Average rectified value and Absolute value
