Specification:-
- Package: SOIC-8 (0.154", 3.90mm)
- No. of Pins: 8
- Supply Current (Typ): 250 uA
- Output: Push-Pull, Push-Pull
- Supply Voltage-Max (Vsup): 5.5 V
- Supply Voltage-Min (Vsup): 3.15 V
- Supply Voltage-Nom (Vsup): 5 V
- Operating Temperature: -40°C to 85°C
SKU: YM8525B1

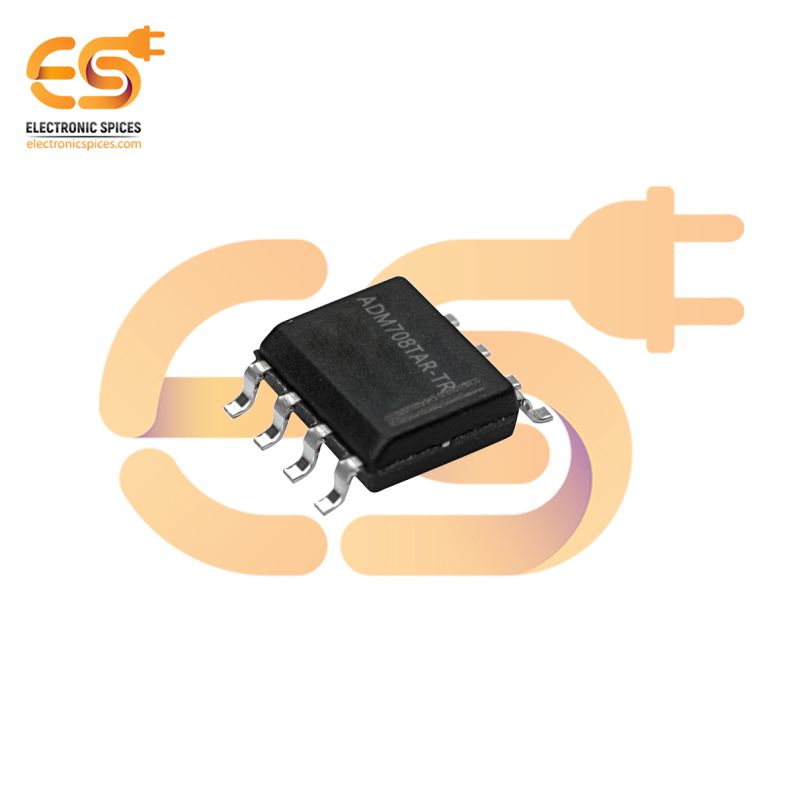

ADM708TAR-TR Supervisor SMD IC 1-Channel 8-Pin SOIC
The ADM708TAR is a high-performance supervisor IC designed to monitor the power supply voltage in microprocessor systems. Packaged in a compact 8-SOIC (Small Outline Integrated Circuit) form factor, this single-channel supervisory IC ensures the reliable operation of microprocessor systems by providing power supply monitoring, reset generation, and watchdog functionality. This device monitors the power supply voltage and generates a reset signal whenever the monitored voltage falls below a specified threshold. The reset signal remains asserted for a predetermined timeout period after the voltage returns to its proper level, ensuring that the system starts up in a known good state. This is particularly crucial in preventing microprocessors from executing code in unpredictable or unstable power conditions, which could lead to system malfunctions or data corruption.
Applications :-
- Microprocessor-Based Systems
- Industrial Automation
- Embedded Systems
- Battery-Powered Devices
Features :-
- Supply Voltage Monitoring
- Low Power Consumption
- Battery Backup Switching
- Compact and suitable for space-constrained applications.
