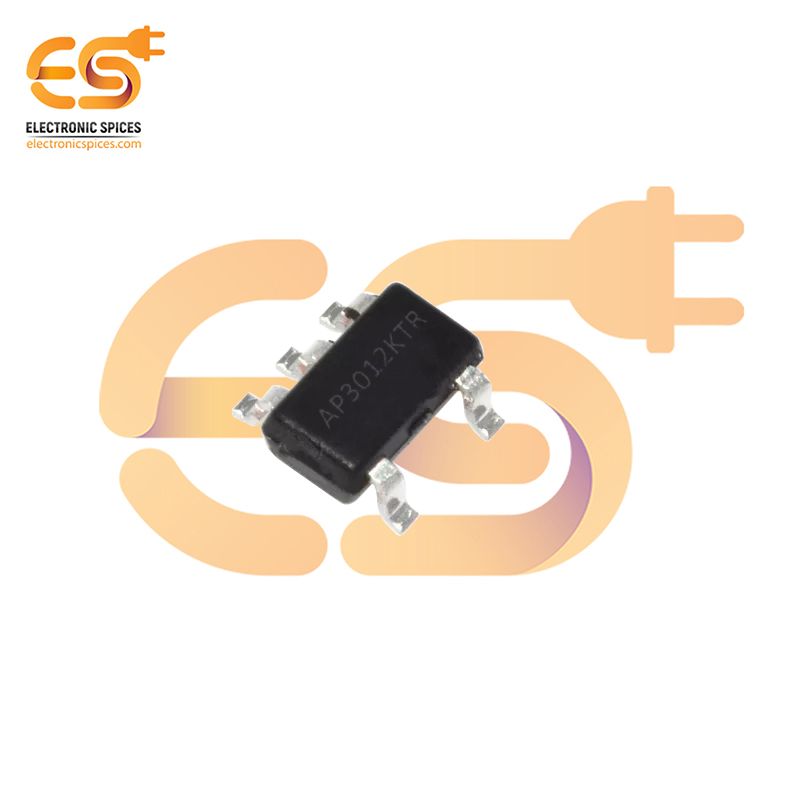

AP3012KTR-G1 Boost Switching Regulator IC Positive Adjustable (SOT-23-5 / SOT753 / SC-74A)
Specification:-
- Package: SOT-23-5 / SOT753 / SC-74A
- Number of Terminals : 5
- Output Current: 500 mA
- Number of Outputs: 1 Output
- Input Voltage: Min: 2.6 V
- Input Voltage: Max: 16 V
- Quiescent Current: 1 uA
- Switching Frequency: 1.5 MHz
- Input Voltage: 2.6 V to 16 V
- Operating Supply Current: 100 nA
- Operating Temperature: -40 °C to 85 °C
SKU: ZT8470A
AP3012KTR-G1 Boost Switching Regulator IC Positive Adjustable (SOT-23-5 / SOT753 / SC-74A)
The AP3012KTR-G1 Boost Switching Regulator IC is a high-efficiency, positive adjustable voltage regulator designed to step up low input voltages to higher, stable output levels. Housed in a compact SOT-23-5 package (SOT753/SC-74A), this IC is ideal for space-constrained applications, providing up to 500mA of output current. It features a 1.25V reference voltage and supports adjustable output voltages, making it versatile for a wide range of power supply requirements. This boost converter operates through a high-frequency switching mechanism that ensures minimal power loss, resulting in high efficiency. It is capable of driving loads requiring higher voltages from low-voltage sources, such as single-cell lithium-ion or alkaline batteries. The AP3012KTR-G1 is designed to deliver a stable output voltage despite varying input conditions, which is crucial for applications like portable devices, energy-efficient circuits, and battery-powered systems. Key features of the AP3012KTR-G1 include internal switches, an integrated synchronous rectifier, and low quiescent current, which contribute to overall energy efficiency. The IC is also equipped with various protection mechanisms, such as overcurrent protection, overvoltage protection, and thermal shutdown, ensuring reliable operation in demanding environments.
Features:-
- High-Speed Performance
- Low Power Consumption
- Wide Operating Voltage Range
