Specification:-
- Package: SOIC-20 (0.295", 7.50mm)
- No. of Pins: 20Pins
- IC Mounting: Surface Mount
- Supply Voltage Min: 1.8V
- Supply Voltage Max: 5.5V
- Operating Frequency Max: 10MHz
- Program Memory Size: 2KB (1K x 16)
- Operating Temperature: -40°C to 85°C
SKU: BF8542B1

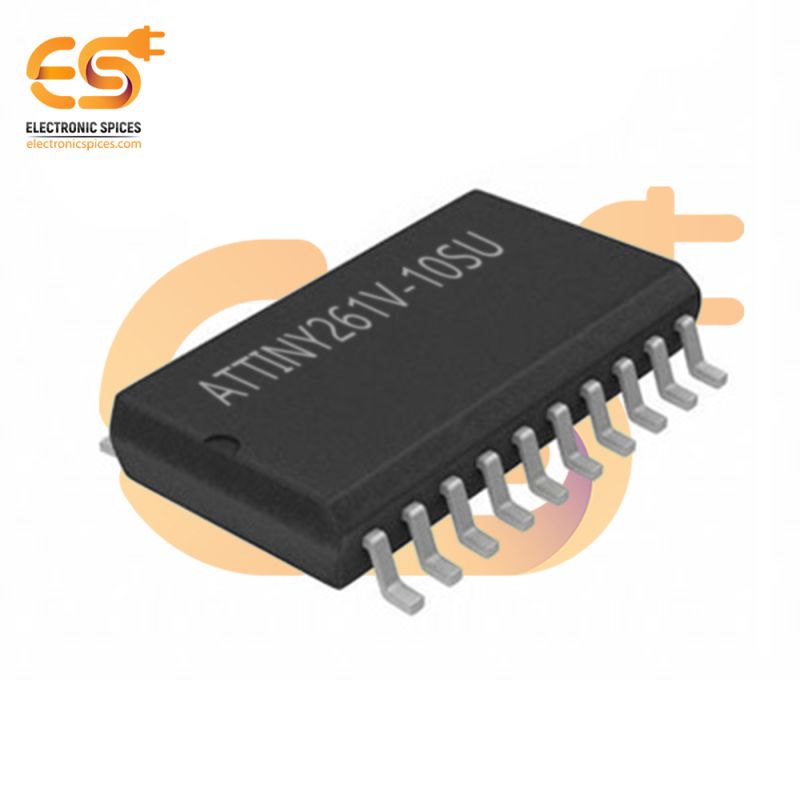

ATTINY261V-10SU-Microcontroller IC Microchip 8-Bit (20-SOIC)
The ATTINY261V-10SU is an 8-bit microcontroller IC from Microchip Technology, housed in a 20-lead SOIC (Small Outline Integrated Circuit) package. This microcontroller is a part of the AVR family, which is known for its efficient and powerful RISC (Reduced Instruction Set Computing) architecture. It features 2 KB of Flash memory for program storage, 128 bytes of EEPROM for non-volatile data storage, and 128 bytes of SRAM for runtime data handling. The ATTINY261V-10SU operates within a voltage range of 1.8V to 5.5V, making it ideal for battery-operated and low-power applications. The microcontroller can run at speeds up to 10 MHz, delivering up to 20 MIPS (Million Instructions Per Second), which ensures high performance in various applications. It includes 16 general-purpose I/O pins, two 8-bit Timer/Counters with PWM (Pulse Width Modulation), a Universal Serial Interface (USI) supporting SPI and I2C communication protocols, and a 10-bit ADC (Analog-to-Digital Converter) with 8 channels. Additionally, it has an analog comparator and a Watchdog Timer for enhanced functionality and reliability.
Features:-
- 2 KB of Flash memory for program storage.
- Development Support
- 16 general-purpose I/O pins
- Power-on Reset and programmable Brown-out Detection
- Capable of running at up to 10 MHz with 10K write/erase cycles for EEPROM
