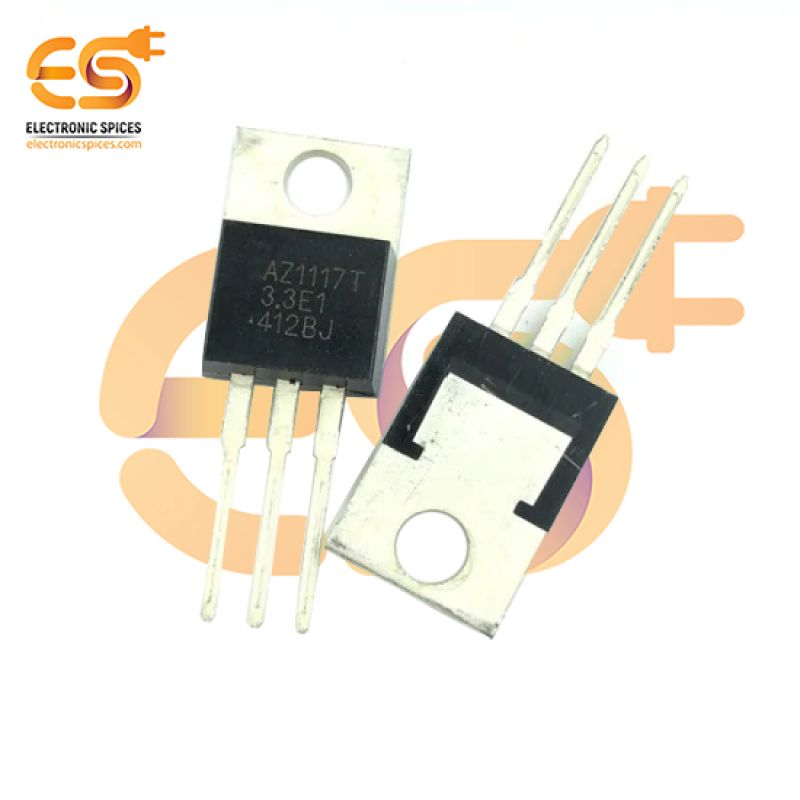

AZ1117T-3.3 Linear Voltage Regulator IC Positive Fixed 1 Output 800mA TO-220-3
Specification:-
- Package: TO-220-3
- Number of Terminals: 3
- Output Current1-Max: 1 A
- Output Voltage1-Nom: 3.3 V
- Dropout Voltage1-Nom: 1.15 V
- Input Voltage Absolute-Max: 20 V
- Operation Junction Temperature: -40 °C to 85 °C
SKU: LF8470A
AZ1117T-3.3 Linear Voltage Regulator IC Positive Fixed 1 Output 800mA TO-220-3
The AZ1117T-3.3 is a linear voltage regulator IC designed to provide a stable 3.3V output from a higher input voltage. With a maximum output current of 800mA, it is well-suited for powering low-power electronics and devices that require a consistent 3.3V supply. The IC is housed in a TO-220-3 package, which is commonly used for devices that require heat dissipation due to higher current handling capabilities. This positive fixed regulator operates with a fixed 3.3V output, making it ideal for applications where a reliable and precise 3.3V is required. It is typically used to regulate voltage for microcontrollers, sensors, communication modules, and other electronic components that operate at 3.3V. The AZ1117T-3.3 features low dropout voltage, meaning it can operate with a small difference between input and output voltage, which enhances its efficiency in battery-powered designs or systems with limited voltage headroom. This feature also helps to reduce power loss during operation. The regulator comes with built-in overcurrent protection and thermal shutdown to safeguard both the IC and the overall system against potential faults. With its combination of reliability, ease of use, and thermal performance, the AZ1117T-3.3 is a popular choice for low-power, fixed-voltage applications requiring 3.3V regulation.
Features:-
- High-Speed Performance
- Low Power Consumption
- Wide Operating Voltage Range
